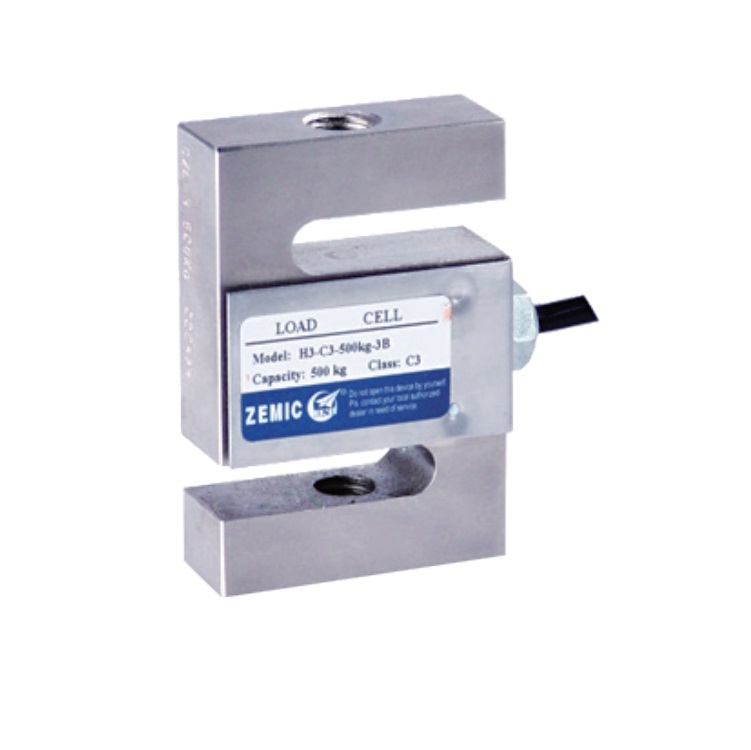

H3 S Type Load Cell Zemic Load Cell

25kg

C3 Excluded from OIML

H3-C3-25kg-3B

50kg

C3 Excluded from OIML

H3-C3-50kg-3B

100kg

C3/C4

H3-C3/C4-100kg-3B

150kg

C3/C4

H3-C3/C4-150kg-3B

200kg

C3/C4

H3-C3/C4-1-0kg-3B

250kg

C3/C4

H3-C3/C4-250kg-3B

300kg

C3/C4

H3-C3/C4-300kg-3B

500kg

C3/C4

H3-C3/C4-500kg-3B

600kg

C3/C4

H3-C3/C4-600kg-3B

750kg

C3/C4

H3-C3/C4-750kg-3B

1t

C3/C4

H3-C3/C4-1t-3B

1.5t

C3/C4

H3-C3/C4-1.5t-3B

2t

C3/C4

H3-C3/C4-2t-3B

2.5t

C3/C4

H3-C3/C4-2.5t-3B

3t

C3 Excluded from OIML

H3-C3-3t-3B

5t

C3 Excluded from OIML

H3-C3-5t-3B

7.5t

C3 Excluded from OIML

H3-C3-7.5t-3B

10t

C3 Excluded from OIML

H3-C3-10t-3B

15t

C3 Excluded from OIML

H3-C3-15t-3B

20t

C3 Excluded from OIML

H3-C3-20t-3B

30t

C3 Excluded from OIML

H3-C3-30t-3B

Output sensitivity(= FS)

mV/V

2.0 ± 0.004

Maximum capacity ( Emax )

t

0.1,0.15,0.2,0.3,0.5,0.6,
0.75,1.0,1.5,2.0,2.5,

0.025,0.05,3.0,5.0,7.5, 10,15,20,30

Maximum number of load cell intervals (nLC)

3000

4000

3000

Ratio of minimum LC verification interval Y = Emax / Vmin

10000

20000

10000

Combined error

%FS

±0.020

± 0.018

±0.020

Minimum dead load

kg

0

Safe overload

of Emax

150%

Ultimate overload

of Emax

300%

Zero balance

%FS

±1.5

Excitation, recommended voltage

V

5~12(DC)

Excitation maximum

V

18(DC)

Input resistance

Ω

350±3.5

Output resistance

Ω

351±2.0

Insulation resistance

MΩ

≥ 5000(50VDC)

Compensated temperature

℃

-10~+40

Operating temperature

℃

-35~+65

Storagetemperature

℃

-40~+70

Element material

Nickel plated alloy steel

lngress protection (according to EN 60529)

IP67

Recommended torque on fixation

N.m

M8:25 M10:50 M12:75 M20:450 M33:750 M42:1450

ATEX classification (optional)

Ⅱ1G Ex ia ⅡC T4

Ⅱ1D Ex iaD 20 T73℃

Ⅱ3G Ex nL ⅡC T4

25kg -50kg

76.2(3.0)

50.8(2.0)

12.7(0.5)

M8

15.7(0.62)

0.1t.0.15t

76.2(3.0)

50.8(2.0)

19(0.75)

M10×1.5

15.3(0.60)

0.2t~0.75t

76.2(3.0)

50.8(2.0)

19(0.75)

M12×1.75

15.1(0.59)~12.5 (0.48)

1,1.5t

76.2(3.0)

50.8(2.0)

25.4(1.0)

M12×1.75

12.6(0.50), 11.7(0.46)

2t~5t

101.6(4.0)

76.2(3.0)

25.4(1.0)

M20×1.5

20(0.79)

7.5t,10t

175(8.89)

125(4.92)

50(1.97)

M33×3

41(1.61), 39.5(1.56)

15t,20t

200(7.87)

160(6.3)

60(2.36)

M42×3

51(2.01)

30t

230(9.06)

190(7.48)

80(3.15)

M42×3

57(2.26)
