H2A
SAINTBOND
Short Description:

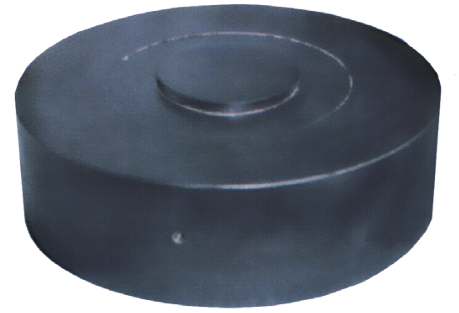

◎Alloy steel IP67 compression load cell；
◎High accuracy；
◎Suitable for special measuring equipment；
Available models：
Capacity | Accuracy | Full article description |
1MN | G2/G3/G5/G10 | H2A-G2/G3/G5/G10-1MN-5T |
2MN | G2/G3/G5/G10 | H2A-G2/G3/G5/G10-2MN-5T |
3MN | G2/G3/G5/G10 | H2A-G2/G3/G5/G10-3MN-5T |
4MN | G2/G3/G5/G10 | H2A-G2/G3/G5/G10-4MN-5T |
5MN | G2/G3/G5/G10 | H2A-G2/G3/G5/G10-5MN-5T |
Specification：
Accuracy class | G2 | G3 | G5 | G10 | |
Output sensitivity(= FS) | mVN | ±2.0 | |||
Maximum capacity ( Emax ) | MN | 1,2,3, 4,5 | |||
Ratio of minimum LC verification interval Y = Emax / Vmin | 1500 | ||||
Combined error | %FS | ±0.2 | ±0.3 | ±0.5 | ±1.0 |
Minimum dead load | of Emax | 0 | |||
Safe overload | of Emax | 150% | |||
Ultimate overload | of Emax | 300% | |||
Zero balance | %FS | ±1.0 | |||
Excitation, recommended voltage voltage | V | 5~12(DC) | |||
Excitation maximum | V | 18(DC) | |||
lnput resistance | Ω | 1072±5 | |||
Output resistance | Ω | 1050±5 | |||
Insulation resistance | MΩ | ≥ 5000(50VDC) | |||
Compensated temperature | ℃ | -10~+40 | |||
Operating temperature | ℃ | -35~+65 | |||
Storage temperature | ℃ | -40~+70 | |||
Element material | Alloy steel(surface bluing treatment,spray painted) | ||||
lngress protection (according to EN 60529) | IP67 | ||||
Recommended torque on fixation | N.m | M16:200 | |||

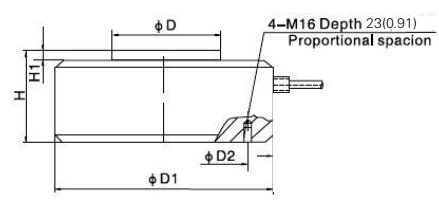

Dimensions in mm：
Capacity Dimension | 1 | 2 | 3 | 4 | 5 |
D | 41 (1.61) | 60 (2.36) | 73 (2.87) | 92 (3.62) | 115 (4.53) |
D1 | 260 (10.24) | 290 (11.42) | 330 (12.99) | 400 (15.75) | 400 (15.75) |
D2 | 200 (7.87) | 225 (8.86) | 251 (9.88) | 296 (11.65) | 307 (12.09) |
H | 80 (3.15) | 104 (4.09) | 123 (4.84) | 132 (5.20) | 132 (5.20) |
H1 | 10 (0.39) | 10 (0.39) | 10 (0.39) | 10 (0.39) | 10 (0.39) |
Wiring：
◎Shielded,4 conductor cable；
◎Cable diameter:Φ5mm；
◎Standard cable length:5m；
◎Shield not connected to element；
