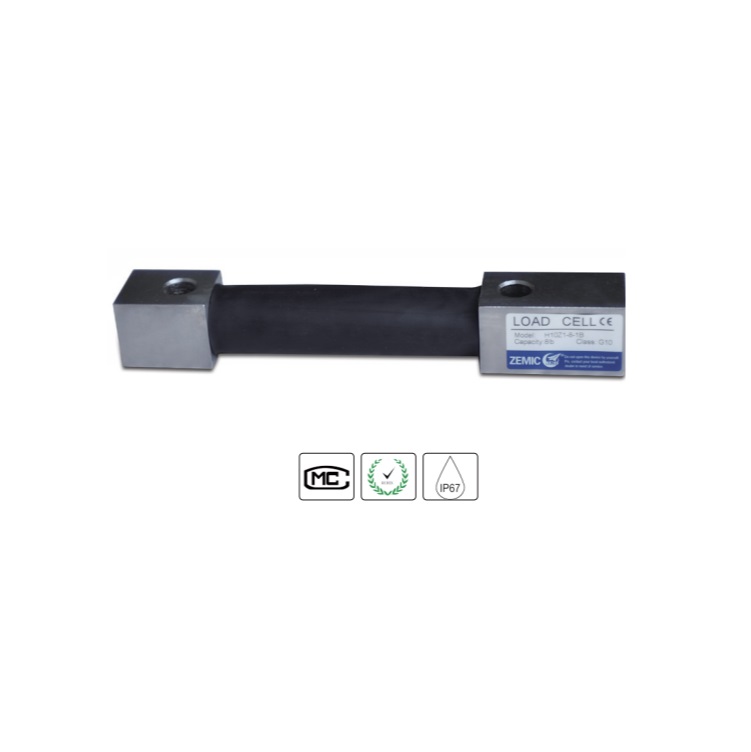

H10Z4
SAINTBOND
Short Description:
◎Alloy steel , nickel plated, plate bending beam structure, adhesive sealed, compression load；
◎Ingress protection (according to EN 60529): IP67；
◎Suitable for on board weighing；
Dimensions in mm：
Available models：
Capacity | Full article description |
8lb | H10Z4-8 |
Specification：
Maximum capacity ( Emax ) | lb | 8 |
Output resistance | mV/V | 1.8±0.25 |
Combined error | %FS | ±1.0 |
Creep( 20 min ) | %FS | ±0.1 |
Zero output | %FS | ±2.5 |
Compensated temperature | ℃ | -10~+40 |
Operating temperature | ℃ | -35~+65 |
Temperature effect on sensitivity | %FS/10℃ | ±0.05 |
Input resistance | Ω | 350±3.5 |
Output resistance | Ω | 350±3.5 |
Insulation resistance（50VDC） | MΩ | ≥ 5000 |
Excitation, recommended voltage | V | 5~12（DC） |
Excitation maximum | V | 18（DC） |
Safe overload | of Emax | 120 |
Ultimate overload | of Emax | 150 |
