H10G2
SAINTBOND
Short Description:

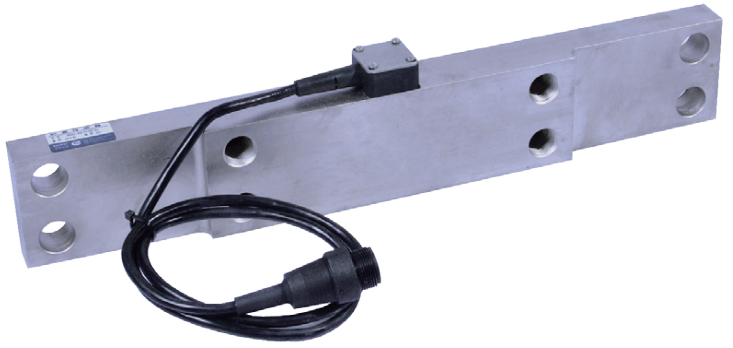

◎Nickel plated alloy steel IP68 dual shear beam load cell；
◎High accuracy；
◎Suitable for truck and track scales and other heavy weighing devices；
◎Hermetically sealed；
Available models：
Capacity | Full article description |
12.5klb | H10G2-12.5K-10 |
12.5klb | H10G2-12.5K-13 |
12.5klb | H10G2-12.5K-16 |
16.5klb | H10G2-16.5K-19 |
Specification：
No. for products type | -0.048076923 | -19 | |
Maximum capacity ( Emax ) | klb | 12.5K | 16.5K |
Output sensitivity ( = FS ) | mV/V | 0.500±0.01mV/V（@12.5K） | 0.5291±0.01mV/V（@13228lb） |
Accuracy class | G10 | ||
Combined error | %FS | ±1.0 | ±1.0 |
Hysteresis | %FS | ±1.0 | ±1.0 |
Non-repeatability | %FS | ±0.1 | ±0.1 |
Creep(20min) | %FS | ±0.1 | ±0.1 |
Zero balance | %FS | ±2.0 | ±2.0 |
Compensated temperature | ℃ | -10~+40 | |
Operating temperature | ℃ | -35~+65 | |
Temperature effect on sensitivity | %FS/10℃ | ±0.36 | |
Temperature effect on zero | %FS/10℃ | ±0.2 | |
Input resistance | Ω | 415±30 | |
Output resistance | Ω | 350±3.5 | |
Insulation resistance | MΩ | ≥ 5000 | |
Excitation, recommended voltage | V | 5~12（DC） | |
Excitation maximum | V | 18（DC） | |
Safe overload | of Emax | 150 | |
Ultimate overload | of Emax | 300 | |

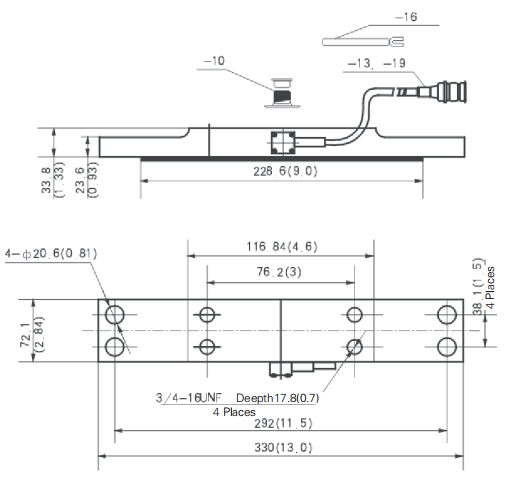

Dimensions in mm：
Wiring：
◎-10: adopt 4 conductor cable with standard connector；
◎-16: adopt 4 conductor cable with square connector. Standard cable length: 10m；
◎-13/-19: adopt 4 conductor cable with twin connectors. Standard cable length: 1m；
Short Description:
◎Nickel plated alloy steel IP68 dual shear beam load cell；
◎High accuracy；
◎Suitable for truck and track scales and other heavy weighing devices；
◎Hermetically sealed；
Available models：
Capacity | Full article description |
12.5klb | H10G2-12.5K-10 |
12.5klb | H10G2-12.5K-13 |
12.5klb | H10G2-12.5K-16 |
16.5klb | H10G2-16.5K-19 |
Specification：
No. for products type | -0.048076923 | -19 | |
Maximum capacity ( Emax ) | klb | 12.5K | 16.5K |
Output sensitivity ( = FS ) | mV/V | 0.500±0.01mV/V（@12.5K） | 0.5291±0.01mV/V（@13228lb） |
Accuracy class | G10 | ||
Combined error | %FS | ±1.0 | ±1.0 |
Hysteresis | %FS | ±1.0 | ±1.0 |
Non-repeatability | %FS | ±0.1 | ±0.1 |
Creep(20min) | %FS | ±0.1 | ±0.1 |
Zero balance | %FS | ±2.0 | ±2.0 |
Compensated temperature | ℃ | -10~+40 | |
Operating temperature | ℃ | -35~+65 | |
Temperature effect on sensitivity | %FS/10℃ | ±0.36 | |
Temperature effect on zero | %FS/10℃ | ±0.2 | |
Input resistance | Ω | 415±30 | |
Output resistance | Ω | 350±3.5 | |
Insulation resistance | MΩ | ≥ 5000 | |
Excitation, recommended voltage | V | 5~12（DC） | |
Excitation maximum | V | 18（DC） | |
Safe overload | of Emax | 150 | |
Ultimate overload | of Emax | 300 | |

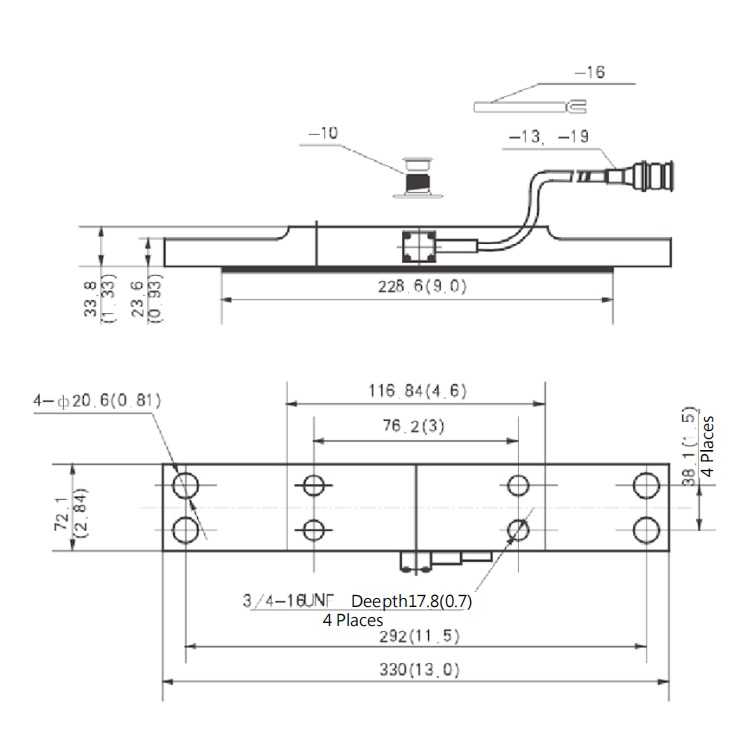

Dimensions in mm：
Wiring：
◎-10: adopt 4 conductor cable with standard connector；
◎-16: adopt 4 conductor cable with square connector. Standard cable length: 10m；
◎-13/-19: adopt 4 conductor cable with twin connectors. Standard cable length: 1m；
