China New Full Electric Stacker Portable Self Loading Stacker

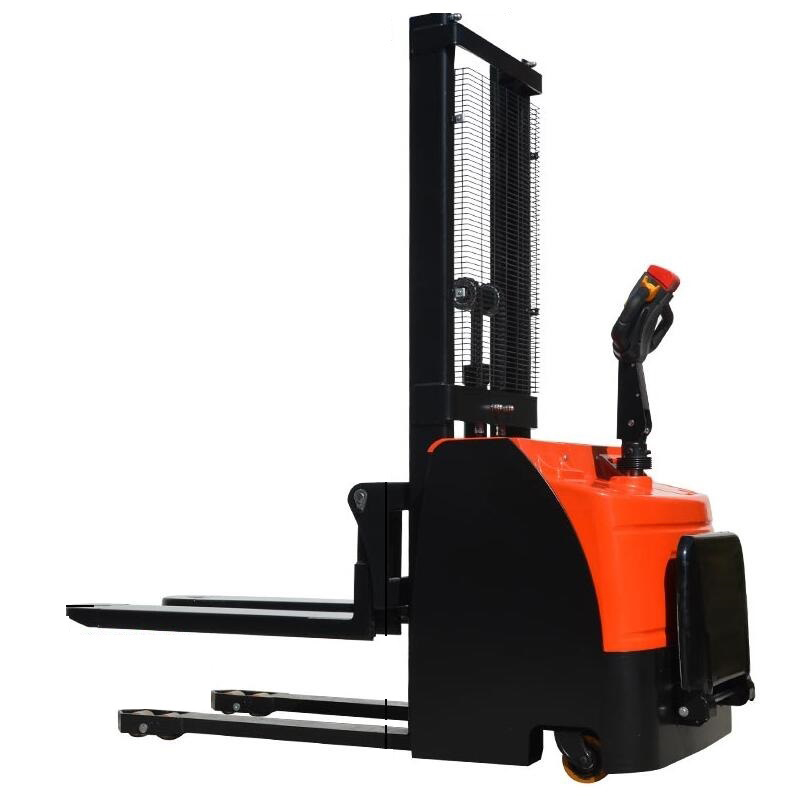

PSES11 is a classic electric stacker with high performance and stability, conforms to international safety standards.

Application:

The model is suitable for lifting and moving in small and medium warehouse and manufacturing facilities, where medium height rack system with narrow aisle is applied. However, the demands in big factories places also increases dramatically recently, where either have similar material storage area, or have individual working areas need self-respond equipment.

Advantage Of Electric Stacker:

◎Emergency reverse switch, greatly enhance the safety;

◎Double mast adopts composite mast;

◎Safe explosion-proof valve equipped with the system ensure operator safety;

◎The two battery and horizontal driving wheel drive system;

◎Electronic control system, easy operation;

◎Excellent driving wheels, reliable braking system;

Safety:

◎Safe hydraulic design prevents mast from falling down abruptly when oil pipes cuts off.

◎Belly button prevents truck from hitting operator.

◎By simply pressing emergency disconnector, power supply will be immediately interrupted.

◎Multiple lifting limited switch ensures travel safety.

◎Truck automatically switches to low speed mode, when lifting height is higher than setting height.

◎Anti-rolling back braking device ensures trucks don't roll back on ramps.

Specification:

Item		Unit	Specification
			PSES11-1t	PSES11-1.5t			PSES11-2t
Basic parameters	Capacity	kg	1000KG	1500KG			2000KG
	Load center	mm	600
	Door lift height series	mm	1500/2000/2500/3300	1600/2000/2500/3300				1600/2000/2500
	To the top weight	kg	1000/900/800/600	1500		1450/1350/1200/900		2000/1800/1500
	Manipulating the way		Walking/standing drive
	Height of cargo fork to ground after descending	mm	90
	Turning radius	mm	1530	1530			1530
Dimension	Total body length (no pedal/pedal)	mm	1880/2330	1880/2330			1880/2330
	Total body width	mm	850	850			850
	Body rest height	mm	1975	1785/1985/2185			1785/1985/2185
	The height of a door as it is raised	mm	1975	1785/1985/2185			1785/1985/2185
	Standard fork size (length/width/height)	mm	1150×160×70
	Goods fork out wide	mm	560-850	560-850			560-850
	Pallet fork in width	mm	240-570	240-570			240-570
Main Performance	Speed (full load/no load)	kg/h	4/6.
	Lifting height (full load/no load)	mm/S	80/130
	Speed of descent (full load/no load)	mm/S	110/90
	Climbing slope (full load/no load)	%	5/8.
	Braking way		Electromagnetic brake
The wheels	Driving wheel	mm	￠250 × 80
	Driving wheel type		Horizontal
	Bearing wheel	mm	￠80 × 70
	Balance wheel	mm	￠156 × 50
Motor	Driving motor	kw	1.2
	Lifting motor	kw	2.2
Battery (voltage/capacity)		V/AH	24V/120AHStartup /160AH traction is generally 240AH total capacity
Control Type			Curtus1207Series control
Net weight (including battery)		kg	500/600/630/660		750/850/880/910			850/950/1000

Product name	China New Full Electric Stacker Portable Self Loading Stacker
Brand	SAINTBOND
Market	All over the world
Features	High precision and stable performance
Advantage	0EM/ODM
Sample Lead Time	5~ 40Days
Sample price	The price is different according to product capacity
Custom Design	Welcome
Form of sale	Factory supply
