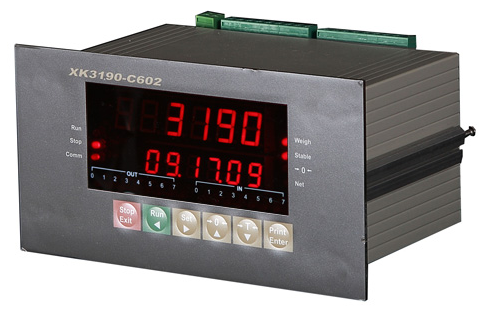

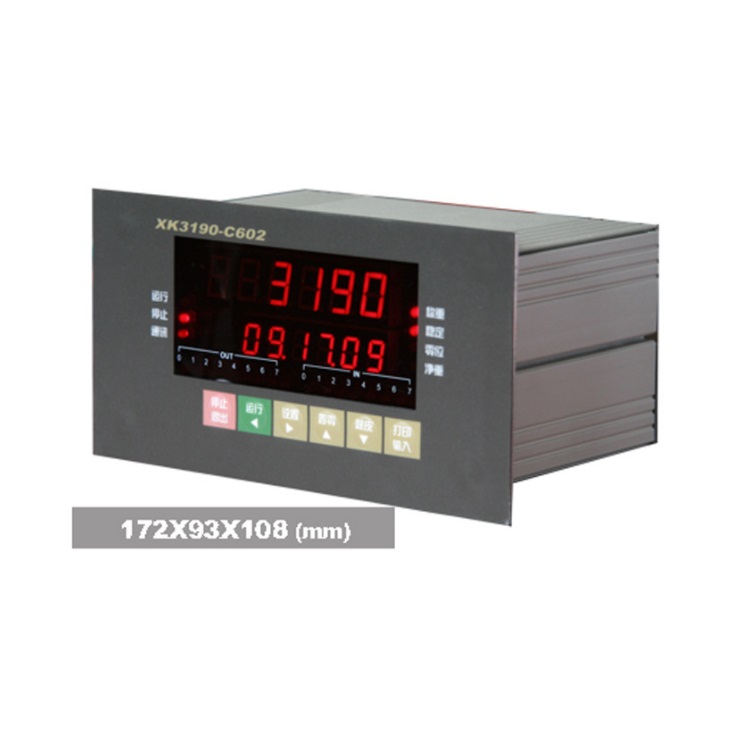

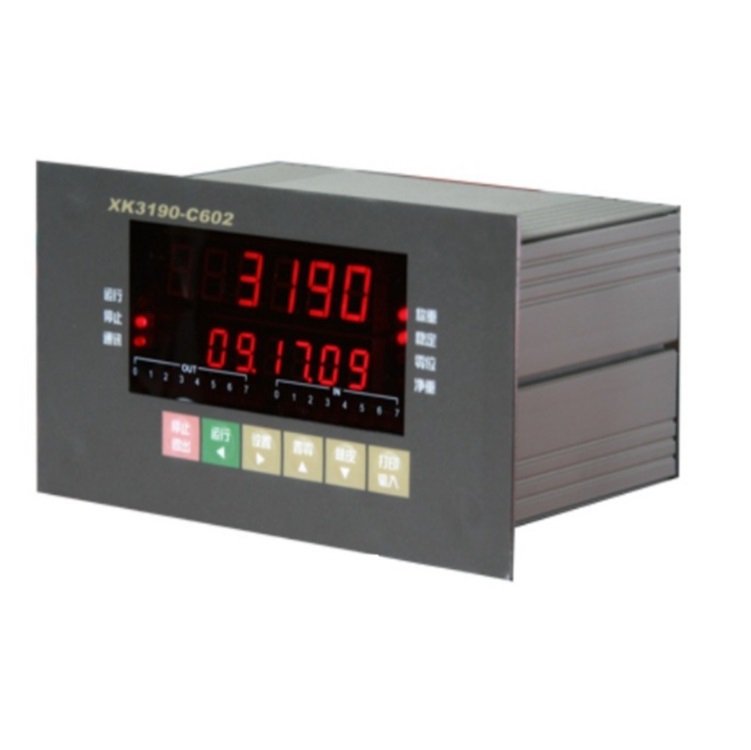

C602 Load Cell Controller Indicator Weighing Controller

Introduction:

Weighing indicator XK3190-C602 adopts 32-bits ARM processor of core Cortex M3 and high precision of ∑-Δ A/D conversion technology. It displays to the conversion of weight signals. The max .conversion speed is over 200 times/sec. This indicator can be composed to catchweigher, Automatic gravimetric filling instruments, etc. It is used in various fast speed and high precision requirement weighing control.



Standard Function:

●Selectable of four programme mode: self-control or external-control catchweigher, plus or minus Automatic gravimetric filling instruments. The catchweigher can be set to be general catchweigher and peak-value maintenance scale. It can store 5 batching material used as fix-quantity scale or catchweigher;

●Able to set digital filter intensity、A/D conversion speed;

●Weighing data save, check and delete, protection in case of power off;

●Real-time clock without effect on power off;

●Standard: 8 input, 2 of them can be high speed counting input, coder input or interrupt(high speed reflection) input; 8 output(optional for relay box). Be able to fix-quantity control of two materials for standard programme;

●Input & output can be expanded, each IO expanding box can be expanded to 8 on/off input and 8 on/off output. The max. connection number of IO expanding box is four. Total quantity of IO is 40 input and 40 output;

●2 separate serial communication interface, one is RS232, another is RS232/ RS422/ RS485/ Modbus for selection, with two communication ways by continuous sending or on command method;

●Parallel/serial print interface, able to connect many kinds of printers;

●Chinese/English weighing data, accumulation, batching material or calibration can be printed;

●Optical isolation 20mA current loop scoreboard display interface;

●Optical isolation 4～20mA/0～5V/0～10V analog output(optional);



Technical Parameter:

●Accuracy class: III ;

●Max. verified counts: n=3000;

●Min. input signal voltage of verified counts e:1μV;

●Input signal range:-15mV～15mV;

●Weighing load cell power supply DC; 5V；80mA.;

●Max. connection number of load cell:4 at 350Ω;

●Load cell connection mode: 6 wire, auto compensation for long distance;

●Display: main display with 6 digits LED, data height: 0.56inch, accessory display with 6 digits LED, data height: 0.4inch, 23 status instruction lights;

●With real time clock. Time and date can be displayed on the indicator panel;

●Max. data storage:8064 weighing data or 4032 time & weighing data;

●Scoreboard display interface: serial output, 20mA current loop signal;

●Communication interface: 2 serial RS232C.one can be set to be RS422/RS485, baud rate 600～57600 for selection;

●Parallel print interface: able to connect with micro printer, wide-line printer model LT800, KX-P1121 or LQ1600K;

●Output: 8 optical isolation, open collector on/off output, be able to connect 8 relay box;

●Input: 8 optical isolation input, input signal +12～+24V DC;

●Input & output expand: able to connect 4 expanding module, each module including 8 optical isolation input and 8 optical isolation relay output;

●Analog output: 1 photoelectricity seclusion output. 4-20mA / 0-5V / 0-10V, three models for selection;

●Power supply:110～230V AC; 50/60 Hz;

●Operating temperature/humidity:0℃～40℃;≤90％RH;

●Storage temperature/humidity:-20～50℃;≤90％RH;

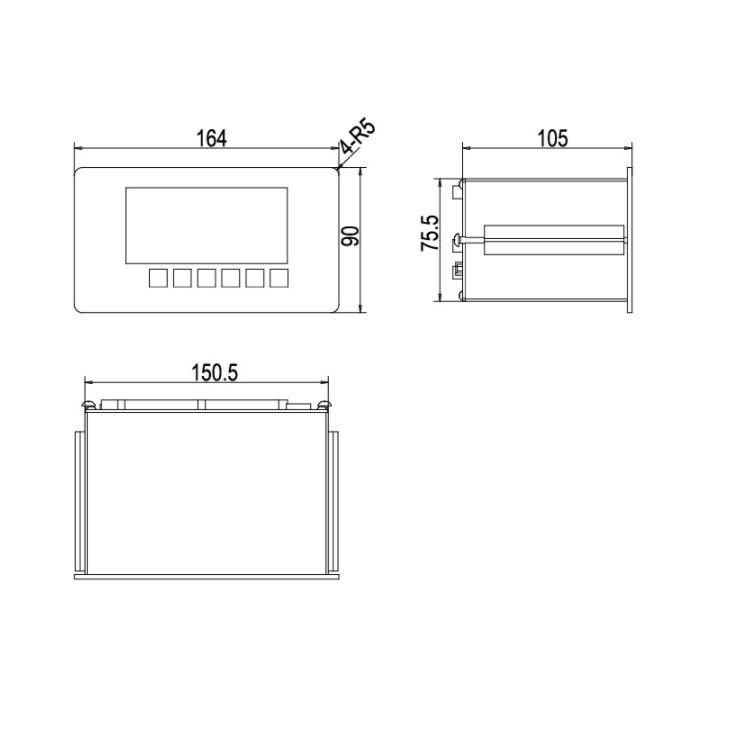

●Dimension of installation portiforium: 152×77 (mm);

●Weight: around 0.8kg;

Product name	C602 Load Cell Controller Indicator Weighing Controller
Brand	SAINTBOND
Market	All over the world
Features	High precision and stable performance
Advantage	0EM/ODM
Sample Lead Time	5~ 40Days
Sample price	The price is different according to product capacity
Custom Design	Welcome
Form of sale	Factory supply
