BM8H
SAINTBOND
Short Description:
◎Stainless steel IP68 shear beam load cell；
◎Hermetically sealed；
◎Suitable for hopper, platform and pallet scales；
◎High accuracy；
◎Current calibrated (sc-option)；
Available models：
Capacity | Accuracy | Full article description |
500kg | C3 | BM8H-C3-500kg-3B-A1 |
1t | C3 | BM8H-C3-1t-3B-A1 |
1.5t | C3 | BM8H-C3-1.5t-3B-A1 |
2t | C3 | BM8H-C3-2t-3B-A1 |
3t | C3 | BM8H-C3-3t-3B-A1 |
5t | C3 | BM8H-C3-5t-3B-A1 |
Specification：
Accuracy class | OIML R60 C3 | |||
Output sensitivity(=FS) | mV/V | 2.0±0.002 | ||
Maximum capacity ( Emax) | t | 0.5,1,1.5,2,3,5 | ||
Maximum number of load cell intervals (nLC) | 3000 | |||
Ratio of minimum LC verification interval Y = Emax / Vmin | 10000 | |||
Combined error | %FS | ±0.023 | ||
Minimum dead load | of Emax | 0 | ||
Safe overload | of Emax | 1.5 | ||
Ultimate overload | of Emax | 3 | ||
Zero balance | %FS | ±1.0 | ||
Excitation, recommended voltage | V | 0)5~12(DC) | ||
Excitation maximum | V | 18(DC) | ||
Input resistance | Ω | 350±3/1000±10 | ||
Output resistance | Ω | 350 ±3/1000 ±10 | ||
Insulation resistance | MΩ | ≥ 5000(50VDC) | ||
Compensated temperature | ℃ | -10~+40 | ||
Operating temperature | ℃ | -35~+65 | ||
Storage temperature | ℃ | -40~+70 | ||
Element material | Stainless steel | |||
Recommended torque on fixation | N.m | M12:100 M20:500 | ||
lngress protection (according to EN 60529) | IP68 | |||
ATEX classification (optional) | Ⅱ1G Ex ia ⅡC T4 | Ⅱ1D Ex iaD 20 T73℃ | Ⅱ3G Ex nL ⅡC T4 | |

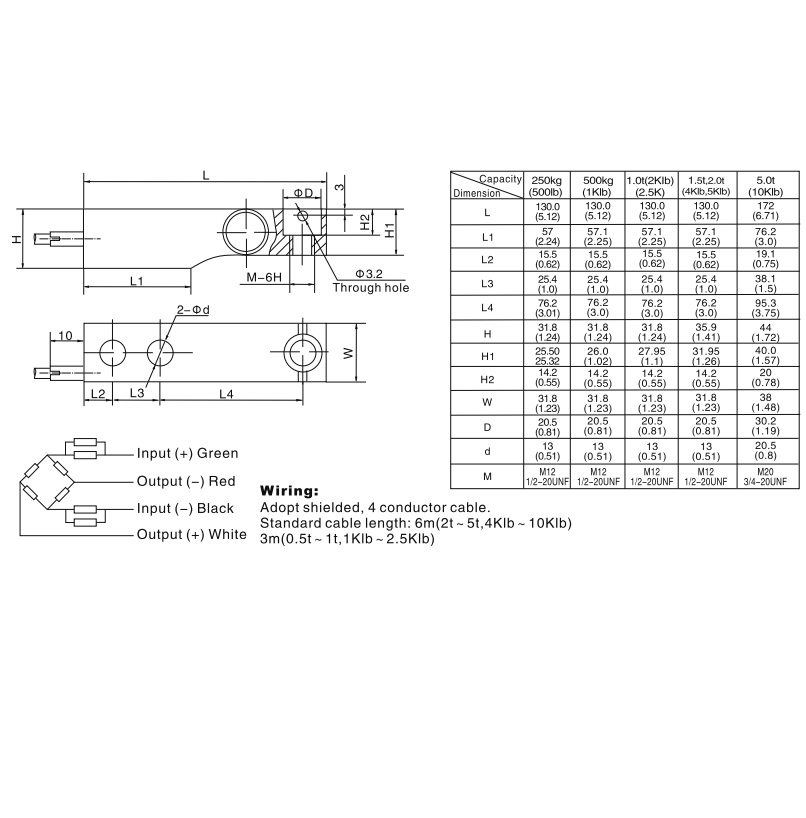

Dimensions in mm：
Capacity | 500kg | 1.0t | 1.5t,2.0t | 2.5t,3.0t | 5.0t |
L | 130.0(5.12) | 130.0 (5.12) | 130.0(5.12) | 172.0 (6.77) | 172.0(6.77) |
L1 | 57.1(2.25) | 57.1(2.25) | 57.1(2.25) | 76.2 (3.0) | 76.2(3.0) |
L2 | 15.5(0.62) | 15.5(0.62) | 15.5(0.62) | 19.1(0.75) | 19.1(0.75) |
L3 | 25.4(1.0) | 25.4 (1.0) | 25.4 (1.0) | 38.1(1.5) | 38.1(1.5) |
L4 | 76.2(3.0) | 76.2 (3.0) | 76.2(3.0) | 95.3(3.75) | 95.3(3.75) |
H | 31.8(1.25) | 31.8(1.24) | 35.9(1.41) | 44 (1.72) | 44(1.72) |
H1 | 26.0(1.02) | 27.95 (1.10) | 31.95(1.26) | 36 (1.42) | 40(1.57) |
H2 | 14.2(0.55) | 14.2 (0.55) | 14.2(0.55) | 20(0.78) | 20 (0.78) |
W | 31.8(1.24) | 31.8(1.24) | 31.8(1.24) | 38 (1.48) | 38 (1.48) |
D | 20.5(0.81) | 20.5 (0.81) | 20.5(0.81) | 30.2 (1.19) | 30.2(1.19) |
d | 13(0.51) | 13 (0.51) | 13 (0.51) | 20.5(0.81) | 20.5(0.81) |
M | M12 | M12 | M12 | M20 | M20 |
Wiring：
◎Shielded, 6 conductor cable and 4 conductor cable for all capacities；
◎Cable diameter: Φ5mm；
◎Standard cable length for 500kg - 1t: 3m and for 2t - 5t: 6m；
◎Shield not connected to element；
