BM6A
SAINTBOND

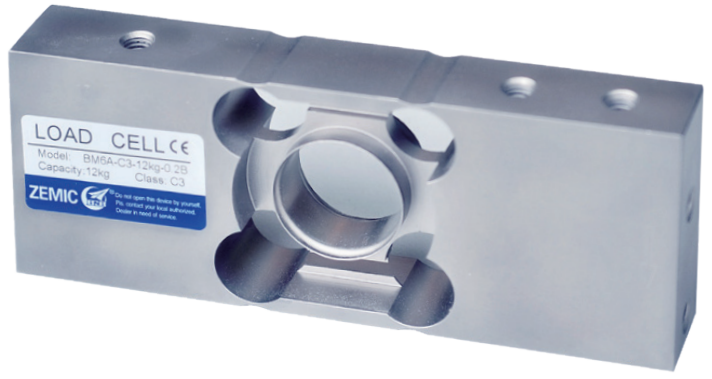

Short Description:
◎Stainless steel IP68 single point load cell；
◎Suitable for platform, belt scales and other weighing devices；
◎Hermetically sealed；
◎ Maximum platform size: 350 x 350 mm；
Available models：
Capacity | Accuracy | Full article description |
6kg | C3 | BM6A-C3-6kg-6B6 |
12kg | C3 | BM6A-C3-12kg-6B6 |
30kg | C3 | BM6A-C3-30kg-6B6 |
60kg | C3 | BM6A-C3-60kg-6B6 |
Specification：
Maximum capacity ( Emax) | kg | 50/100/150/200/250 | ||
Accuracy class | C3 | |||
Maximum number of load cell intervals (nLC) | 3000 | |||
Ratio of minimumLC verification interval Y = Emax / Vmin | Emax/10000 | |||
Combined error | %FS | ±0.020 | ||
Creep | %FS/30min | ±0.016 | ||
Temperature effect on sensitivity | %FS/10℃ | ±0.011 | ||
Temperature effect on zero | %FS/10℃ | ±0.015 | ||
Output sensitivity (= FS) | mV/V | 2.0±0.2 | ||
Input resistance | Ω | 400±20 | ||
Output resistance | Ω | 351±2.0 | ||
Insulation resistance | MΩ | ≥ 5000(50VDC) | ||
Zero balance | %FS | ±1.5 | ||
Compensated temperature | ℃ | -10~+40 | ||
Operating temperature | ℃ | -35~+65 | ||
Excitation, recommended voltage | V | 5-12(DC) | ||
Excitation maximum | V | 18(DC) | ||
Safe overload | of Emax | 150 | ||
Ultimate overload, | of Emax | 300 | ||
Corner correction | 0.02%load value/100mm | |||
Recommended torque on fixation | N.m | 10 | ||
ATEX classification (optional) | Ⅱ1G Ex ia ⅡC T4 | Ⅱ1D Ex iaD 20 T73℃ | Ⅱ3G Ex nL ⅡC T4 | |
Note: "S1" output sensitivity is 2.0± 0.002mV/V, input resistance is 384 +4 | ||||

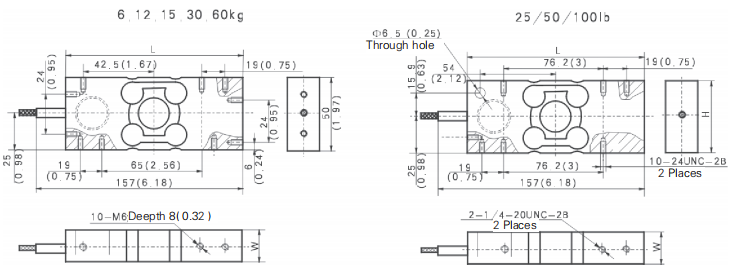

Dimensions in mm：
Capacity | 6 kg | 12 kg | 30 kg | 60 kg |
A in mm | 18.5 | 18.5 | 18.5 | 23.5 |
Wiring：
◎Shielded cable, 6 conductor cable；
◎Cable diameter: Φ6.2mm；
◎ Standard cable length: 6m；
◎Shield not connected to element；
Short Description:
◎Stainless steel IP68 single point load cell；
◎Suitable for platform, belt scales and other weighing devices；
◎Hermetically sealed；
◎ Maximum platform size: 350 x 350 mm；
Available models：
Capacity | Accuracy | Full article description |
6kg | C3 | BM6A-C3-6kg-6B6 |
12kg | C3 | BM6A-C3-12kg-6B6 |
30kg | C3 | BM6A-C3-30kg-6B6 |
60kg | C3 | BM6A-C3-60kg-6B6 |
Specification：
Maximum capacity ( Emax) | kg | 50/100/150/200/250 | ||
Accuracy class | C3 | |||
Maximum number of load cell intervals (nLC) | 3000 | |||
Ratio of minimumLC verification interval Y = Emax / Vmin | Emax/10000 | |||
Combined error | %FS | ±0.020 | ||
Creep | %FS/30min | ±0.016 | ||
Temperature effect on sensitivity | %FS/10℃ | ±0.011 | ||
Temperature effect on zero | %FS/10℃ | ±0.015 | ||
Output sensitivity (= FS) | mV/V | 2.0±0.2 | ||
Input resistance | Ω | 400±20 | ||
Output resistance | Ω | 351±2.0 | ||
Insulation resistance | MΩ | ≥ 5000(50VDC) | ||
Zero balance | %FS | ±1.5 | ||
Compensated temperature | ℃ | -10~+40 | ||
Operating temperature | ℃ | -35~+65 | ||
Excitation, recommended voltage | V | 5-12(DC) | ||
Excitation maximum | V | 18(DC) | ||
Safe overload | of Emax | 150 | ||
Ultimate overload, | of Emax | 300 | ||
Corner correction | 0.02%load value/100mm | |||
Recommended torque on fixation | N.m | 10 | ||
ATEX classification (optional) | Ⅱ1G Ex ia ⅡC T4 | Ⅱ1D Ex iaD 20 T73℃ | Ⅱ3G Ex nL ⅡC T4 | |
Note: "S1" output sensitivity is 2.0± 0.002mV/V, input resistance is 384 +4 | ||||
Dimensions in mm：
Capacity | 6 kg | 12 kg | 30 kg | 60 kg |
A in mm | 18.5 | 18.5 | 18.5 | 23.5 |
Wiring：
◎Shielded cable, 6 conductor cable；
◎Cable diameter: Φ6.2mm；
◎ Standard cable length: 6m；
◎Shield not connected to element；
