BM3
SAINTBOND
Short Description:

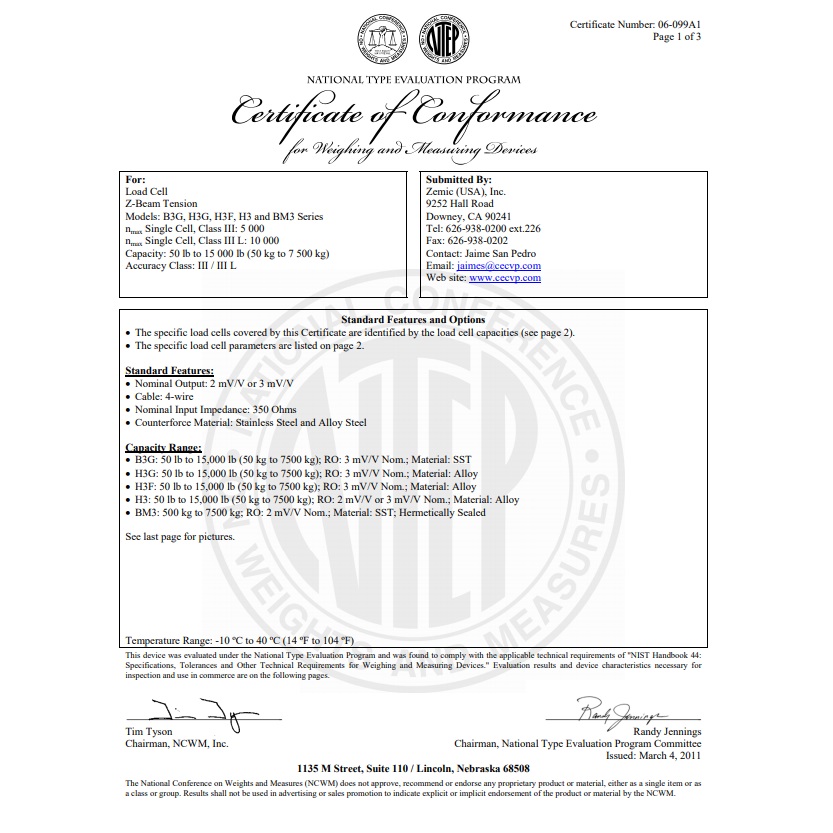

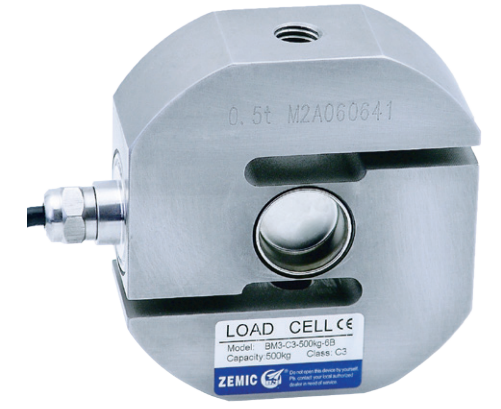

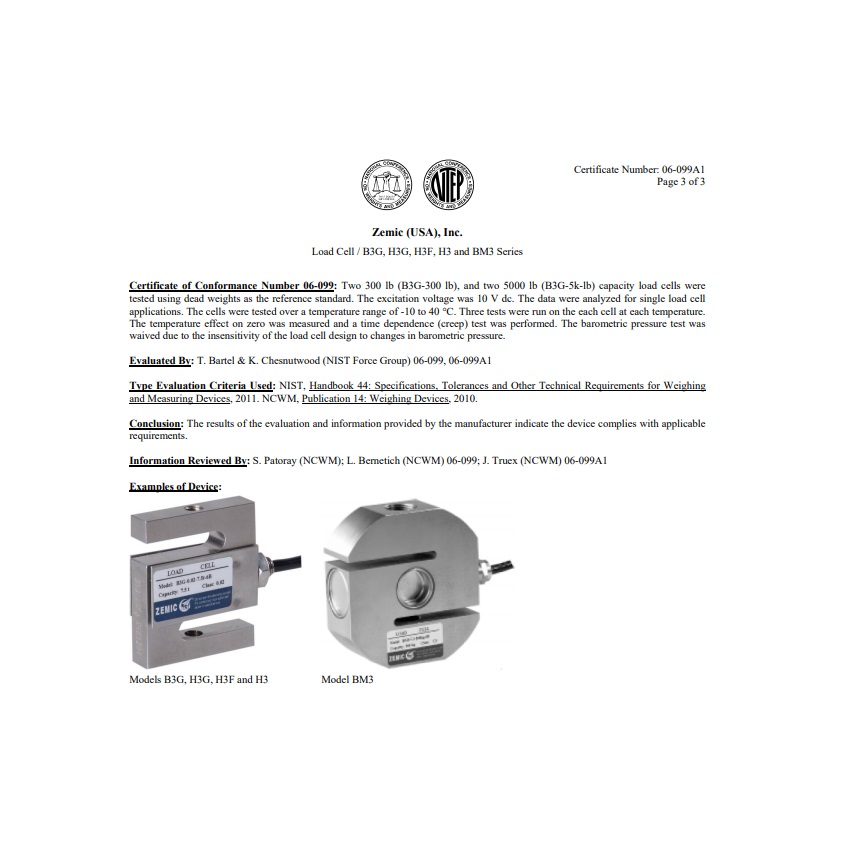

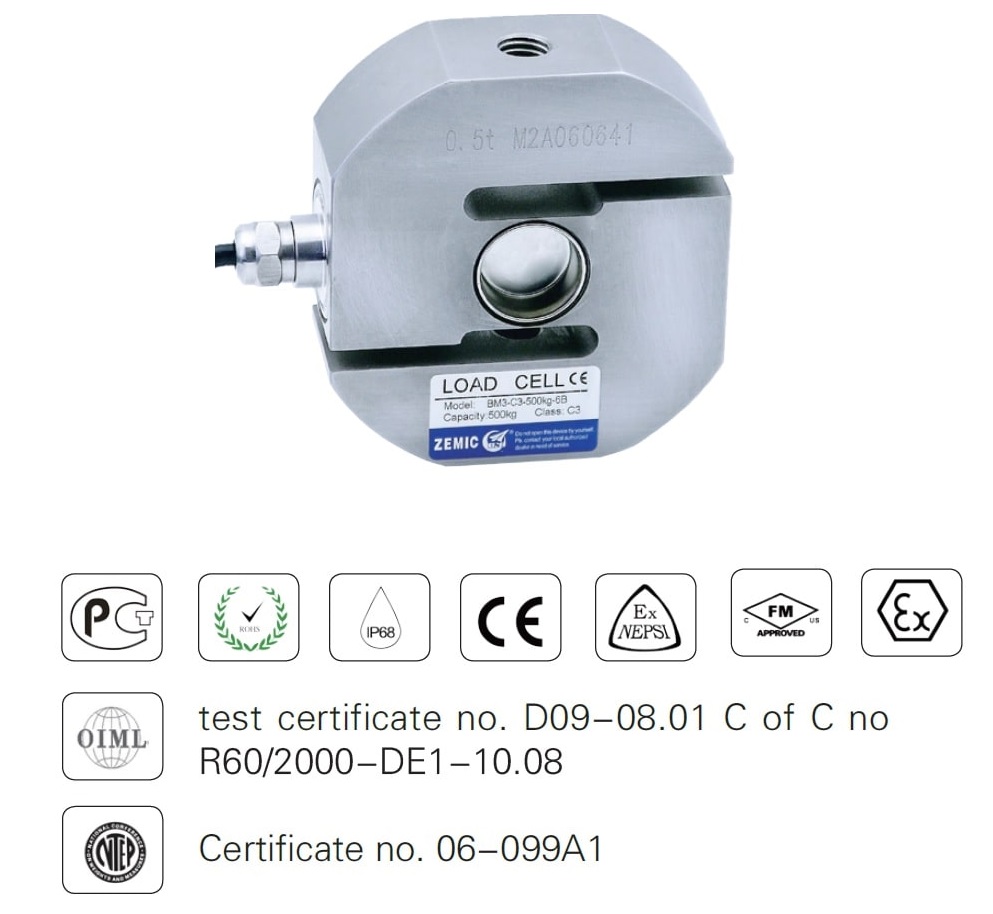

◎Stainless steel IP68 “S” type load cell;
◎Tension and compression applications;
◎Suitable for hanging, hopper and other weighing devices;
Available models:
Capacity | Accuracy | Full article description | Capacity | Accuracy | Full article description |
50kg | C3 | BM3-C3-50kg-6B | 1.0t | C3 | BM3-C3-1.0t-6B |
100 kg | C3 | BM3-C3-100kg-6B | 2.0t | C3 | BM3-C3-2.0t-6B |
150 kg | C3 | BM3-C3-150kg-6B | 3.0t | C3 | BM3-C3-3.0t-6B |
200 kg | C3 | BM3-C3-200kg-6B | 4.0t | C3 | BM3-C3-4.0t-6B |
250 kg | C3 | BM3-C3-250kg-6B | 5.0t | C3 | BM3-C3-5.0t-6B |
500kg | C3 | BM3-C3-500kg-6B | 6.0t | C3 | BM3-C3-6.0t-6B |
7.5t | C3 | BM3-C3-7.5t-6B |
Specification:
Accuracy dlass | OIML R60 C3 | |||
Output sensitivity(= FS) | mV/V | 2.0 ± 0.004 | ||
Maximum capacity ( Emax) | t | 0.5, 1, 2, 2.5, 3, 4, 5, 6, 7.5 | ||
Maximum number of load cell intervals(nLC) | 3000 | |||
Ratio of minimum LC verification interval Y= Emax / Vmin | 7500 12000 | |||
Combined error | %FS | 土0.02 | ||
Minimum dead load | kg | 0 | ||
Safe overload | of Emax | 1.5 | ||
Ultimate overload | of Emax | 3 | ||
Zero balance | %FS | ± 1.0 | ||
Excitation, recommended voltage | V | 5~12(DC) | ||
Excitation maximum | V | 18(DC) | ||
Input resistance | Ω | 350±3.5 | ||
Output resistance | Ω | 350±3.5 | ||
Insulation resistance | MΩ | ≥ 5000(50VDC) | ||
Compensated temperature | ℃ | -10~+40 | ||
Operating temperature | ℃ | -35~+65 | ||
Storage temperature | ℃ | -40~+70 | ||
Element matenial | Stainless steel | |||
Ingress protection (according to EN 60529) | IP68 | |||
ATEX classification (optional) | Ⅱ1G Ex ia ⅡC T4 | Ⅱ1D Ex iaD 20 T73℃ | Ⅱ3G Ex nL ⅡC T4 |

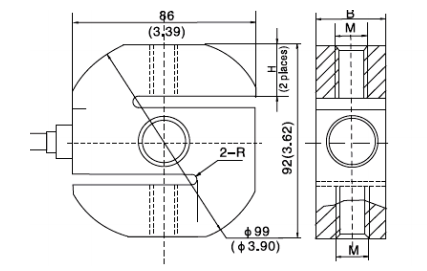

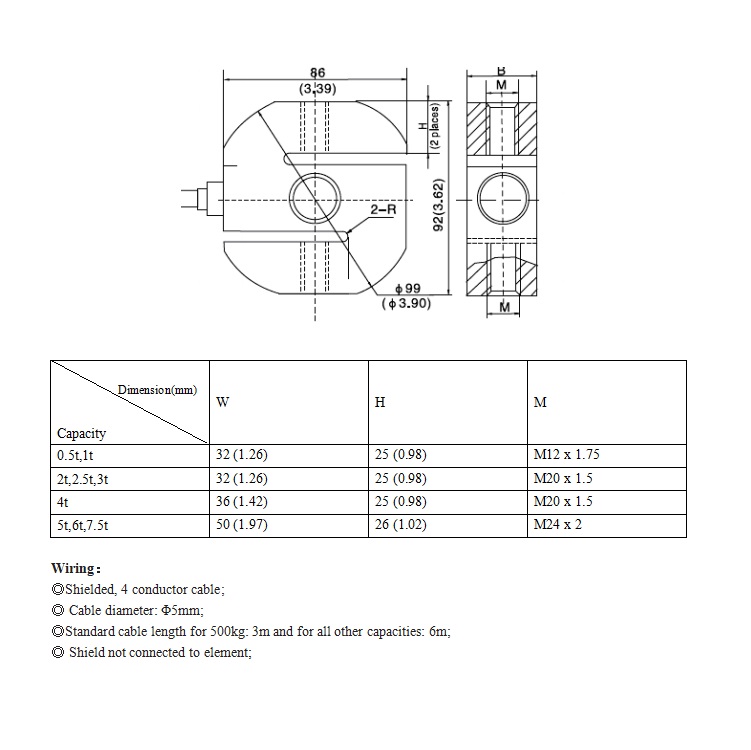

Dimensions in mm:
Dimension(mm) Capacity | W | H | M |
0.5t,1t | 32 (1.26) | 25 (0.98) | M12 x 1.75 |
2t,2.5t,3t | 32 (1.26) | 25 (0.98) | M20 x 1.5 |
4t | 36 (1.42) | 25 (0.98) | M20 x 1.5 |
5t,6t,7.5t | 50 (1.97) | 26 (1.02) | M24 x 2 |
Wiring:
◎Shielded, 4 conductor cable;
◎ Cable diameter: Φ5mm;
◎Standard cable length for 500kg: 3m and for all other capacities: 6m;
◎ Shield not connected to element;
