BM14D
SAINTBOND
Short Description:

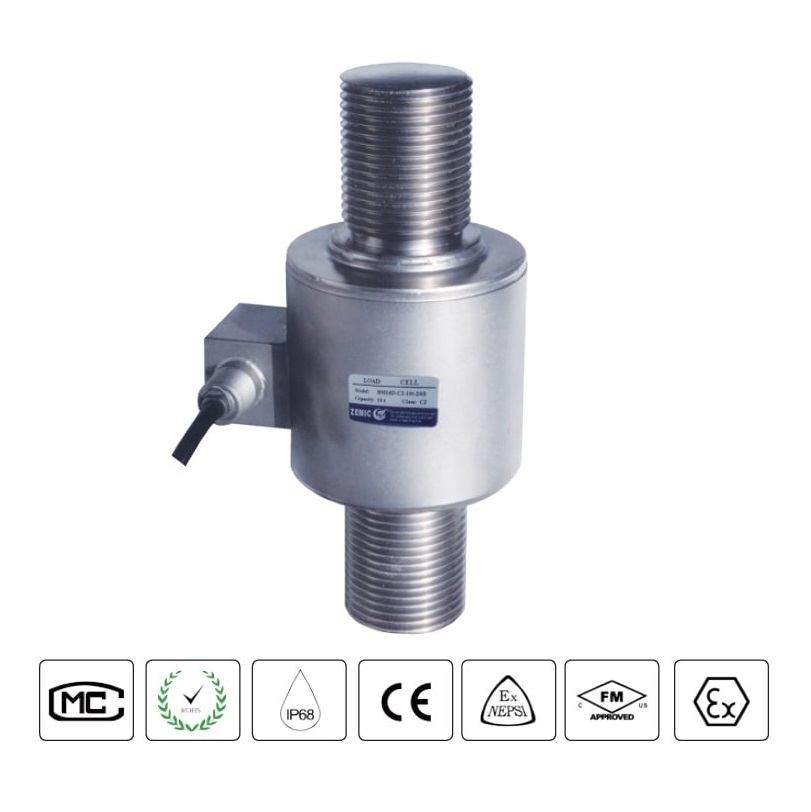

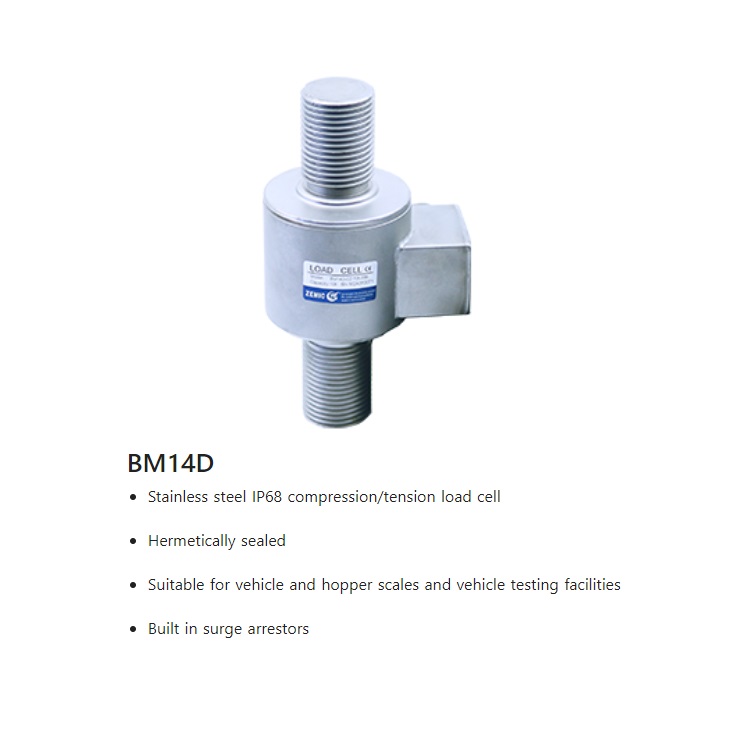

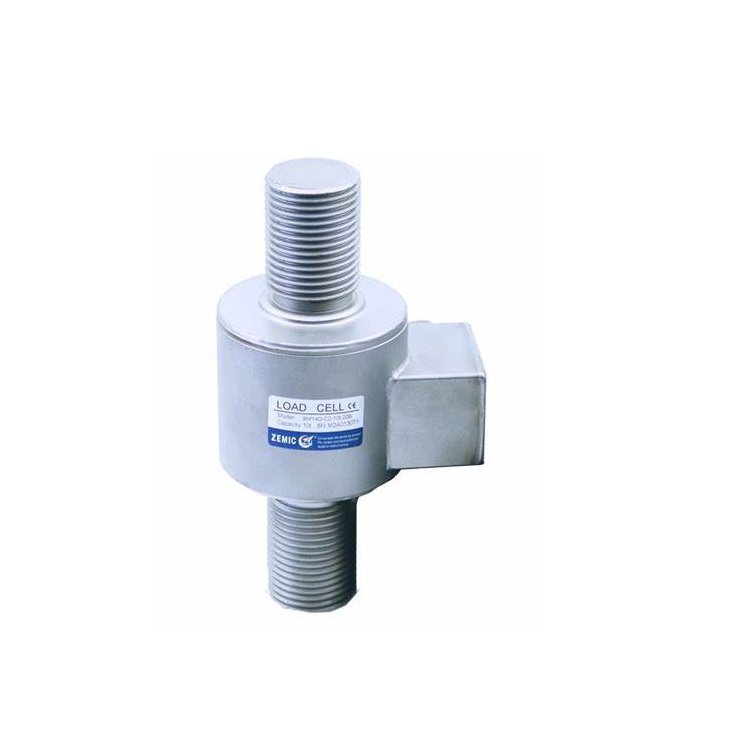

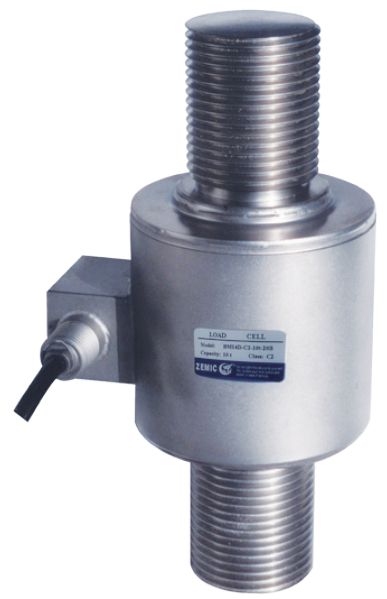

◎Stainless steel IP68 compression/tension load cell；
◎Hermetically sealed；
◎Suitable for vehicle and hopper scales and vehicle testing facilities；
◎Built in surge arrestors；

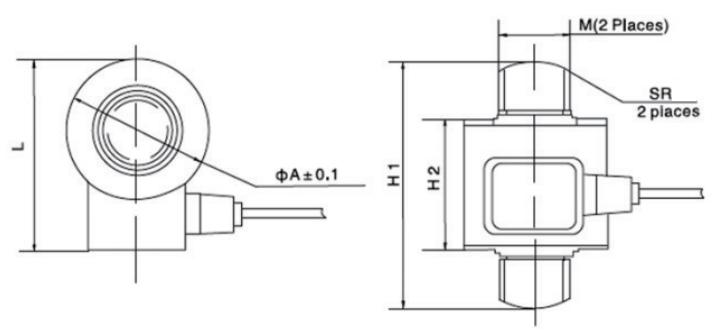

Dimensions in mm：
Dimension | H1 | H2 | ΦA | L | M | SR |
10t~20t | 180 (7.08) | 69.3 (2.73) | 73 (2.87) | 99.7 (3.92) | M36×3 | 200 (7.87) |
25t~30t | 200 (7.87) | 70 (2.75) | 88.9 (3.5) | 115.6 (4.55) | M42×3 | 250 (9.84) |
40t~60t | 250 (9.84) | 99.3 (3.91) | 105 (4.13) | 138.3 (5.44) | M56×4 | 300 (11.81) |
100t | 350 (13.7) | 131.9 (5.19) | 152.4 (4.93) | 183.9 (7.14) | M76×4 | 400 (15.75) |
Available models：
Capacity | Accuracy | Full article description |
10t | C2 | BM14D-C2-10t-13B |
20t | C2 | BM14D-C2-20t-13B |
25t | C2 | BM14D-C2-25t-13B |
30t | C2 | BM14D-C2-30t-13B |
40t | C2 | BM14D-C2-40t-13B |
50t | C2 | BM14D-C2-50t-13B |
100t | C2 | BM14D-C2-100t-13B |
Specification：
Accuracy class | C2 | |||
Output sensitivity ( = FS ) | mV/V | 1.5 ± 0.003 | ||
Maximum capacity ( Emax ) | t | 10, 20, 25, 30, 40, 50, 100 | ||
Maximum number of load cell intervals ( nLC ) | 2000 | |||
Ratio of minimum LC verification interval Y = Emax / vmin | 5000 | |||
Combined error | %FS | ± 0.030 | ||
Minimum dead load | t | 0 | ||
Safe overload | of Emax | 150 % | ||
Ultimate overload | of Emax | 300 % | ||
Zero balance | %FS | ± 1.0 | ||
Excitation, recommended voltage | V | 5 ~ 12( DC ) | ||
Excitation maximum | V | 18( DC ) | ||
Input resistance | Ω | 700 ± 7 | ||
Output resistance | Ω | 703 ± 4 | ||
Insulation resistance | MΩ | ≥ 5000 ( 50VDC ) | ||
Compensated temperature | ℃ | -10 ~+40 | ||
Operating temperature | ℃ | -35 ~ +65 | ||
Storage temperature | ℃ | -40 ~ +70 | ||
Element material | Stainless steel | |||
Ingress protection (according to EN 60529) | IP68 | |||
ATEX classification (optional) | II1G Ex ia IIC T4 | II1D Ex iaD 20 T73℃ | II3G Ex nL IIC T4 | |
Wiring：
◎Shielded, 4 conductor cable；
◎Cable diameter: Φ7.7mm；
◎Standard cable length: 13m；
◎Shield not connected to element；
