BM11
SAINTBOND
Short Description:

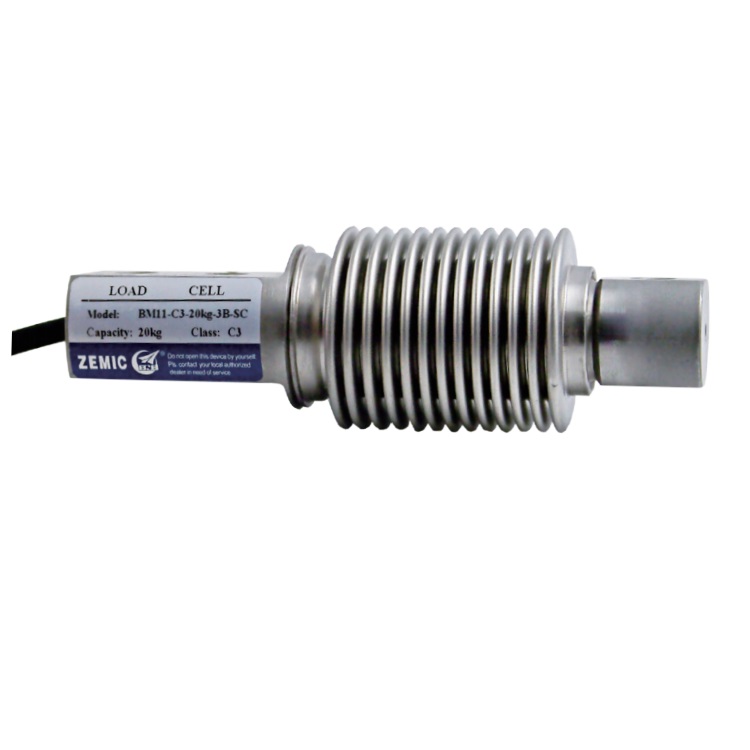

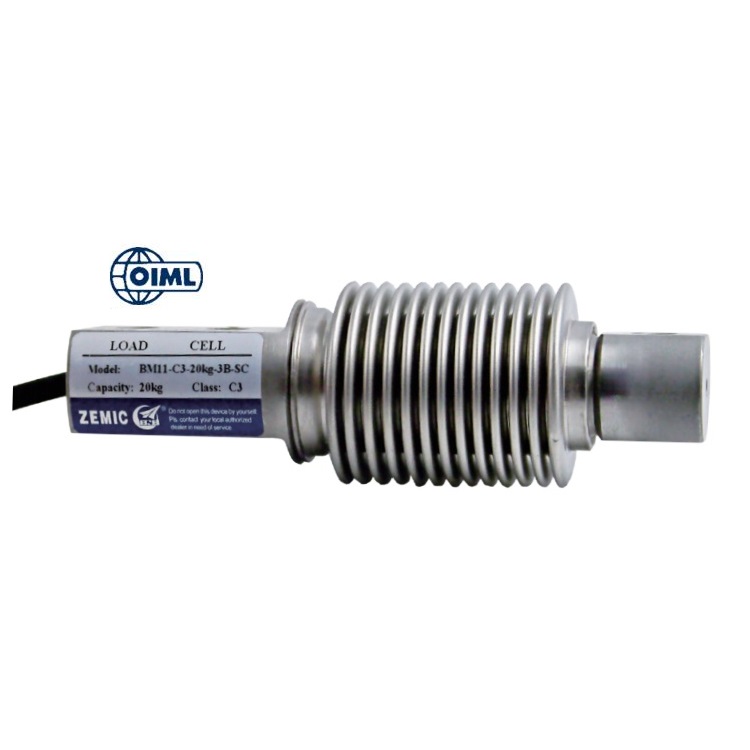

◎Stainless steel IP68 single ended bending beam；
◎Hermetically sealed；
◎Suitable for pallet, platform and small hopper scales；
◎High accuracy；
◎Current calibrated (sc-option)；

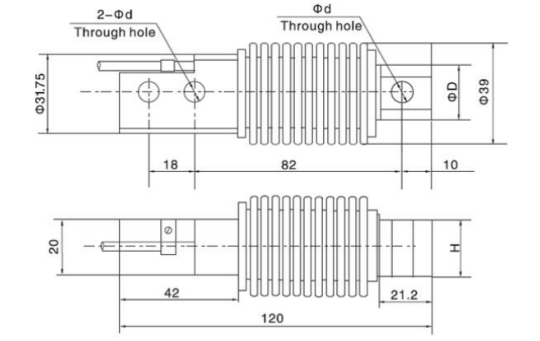

Dimensions in mm：
Capacity(kg) | 5,10,20,30,50,100,150,200 | 250,300,350,500 |
d | 8.2 (0.32) | 10.3 (0.41) |
D | 23 (0.91) | 24 (0.94) |
H | 20 (0.79) | 19 (0.75) |
Available models：
Capacity | Accuracy | Full article description | Capacity | Accuracy | Full article description |
5kg | C3 Excluded from OIML | BM11-C3-5kg-3B-SC | 100 kg | C3/C4 | BM11-C3/C4-100kg-3B-SC |
10kg | C3/C4 | BM11-C3/C4-10kg-3B-SC | 200 kg | C3/C4 | BM11-C3/C4-200kg-3B-SC |
20kg | C3/C4 | BM11-C3/C4-20kg-3B-SC | 250 kg | C3/C4 | BM11-C3/C4-250kg-3B-SC |
30kg | C3/C4 | BM11-C3/C4-30kg-3B-SC | 350 kg | C3/C4 | BM11-C3/C4-350kg-3B-SC |
50kg | C3/C4 | BM11-C3/C4-50kg-3B-SC | 500kg | C3/C4 | BM11-C3/C4-500kg-3B-SC |
Specification：
Accuracy class | C3 | OIML R60 C3 | OIML R60 C4 | |
Output sensitivity ( = FS ) | mV/V | 2.0 ± 0.02 | ||
Maximum capacity ( Emax ) | klb | 5 | 10,20,30,50,100,200,250,350,500 | |
Maximum number of load cell intervals ( nLC ) | 3000 | 3000 | 4000 | |
Ratio of minimum LC verification interval Y = Emax / vmin | 10000 | 15000 | ||
Combined error | %FS | ± 0.023 | ± 0.0174 | |
Minimum dead load | of Emax | 0% | ||
Safe overload | of Emax | 150 % | ||
Ultimate overload | of Emax | 300 % | ||
Zero balance | %FS | ± 1.0 | ||
Excitation, recommended voltage | V | 5 ~ 12( DC ) | ||
Excitation maximum | V | 18( DC ) | ||
Input resistance | Ω | 460 ± 50 | ||
Output resistance | Ω | 350 ± 3.5 | ||
Insulation resistance | MΩ | ≥ 5000 ( 50VDC ) | ||
Compensated temperature | ℃ | -10 ~+40 | ||
Operating temperature | ℃ | -35 ~ +65 | ||
Storage temperature | ℃ | -40 ~ +70 | ||
Element material | Stainless steel | |||
Ingress protection (according to EN 60529) | IP68 | |||
Recommended torque on fixation | N.m | M8:25 M10:50 | ||
ATEX classification (optional) | II1G Ex ia IIC T4 | II1D Ex iaD 20 T73℃ C | II3G Ex nL IIC T4 | |
Wiring：
◎Shielded, 6 and 4 conductor cable for all capacities；
◎Cable diameter: Φ 5mm；
◎Standard cable length for 4 conductor cable: 3m and for 6 conductor cable: 6m；
◎Shield not connected to element；
Short Description:

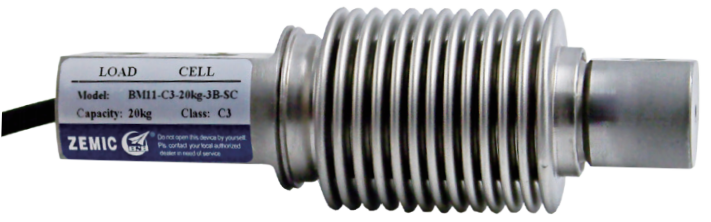

◎Stainless steel IP68 single ended bending beam；
◎Hermetically sealed；
◎Suitable for pallet, platform and small hopper scales；
◎High accuracy；
◎Current calibrated (sc-option)；
Dimensions in mm：
Capacity(kg) | 5,10,20,30,50,100,150,200 | 250,300,350,500 |
d | 8.2 (0.32) | 10.3 (0.41) |
D | 23 (0.91) | 24 (0.94) |
H | 20 (0.79) | 19 (0.75) |
Available models：
Capacity | Accuracy | Full article description | Capacity | Accuracy | Full article description |
5kg | C3 Excluded from OIML | BM11-C3-5kg-3B-SC | 100 kg | C3/C4 | BM11-C3/C4-100kg-3B-SC |
10kg | C3/C4 | BM11-C3/C4-10kg-3B-SC | 200 kg | C3/C4 | BM11-C3/C4-200kg-3B-SC |
20kg | C3/C4 | BM11-C3/C4-20kg-3B-SC | 250 kg | C3/C4 | BM11-C3/C4-250kg-3B-SC |
30kg | C3/C4 | BM11-C3/C4-30kg-3B-SC | 350 kg | C3/C4 | BM11-C3/C4-350kg-3B-SC |
50kg | C3/C4 | BM11-C3/C4-50kg-3B-SC | 500kg | C3/C4 | BM11-C3/C4-500kg-3B-SC |
Specification：
Accuracy class | C3 | OIML R60 C3 | OIML R60 C4 | |
Output sensitivity ( = FS ) | mV/V | 2.0 ± 0.02 | ||
Maximum capacity ( Emax ) | klb | 5 | 10,20,30,50,100,200,250,350,500 | |
Maximum number of load cell intervals ( nLC ) | 3000 | 3000 | 4000 | |
Ratio of minimum LC verification interval Y = Emax / vmin | 10000 | 15000 | ||
Combined error | %FS | ± 0.023 | ± 0.0174 | |
Minimum dead load | of Emax | 0% | ||
Safe overload | of Emax | 150 % | ||
Ultimate overload | of Emax | 300 % | ||
Zero balance | %FS | ± 1.0 | ||
Excitation, recommended voltage | V | 5 ~ 12( DC ) | ||
Excitation maximum | V | 18( DC ) | ||
Input resistance | Ω | 460 ± 50 | ||
Output resistance | Ω | 350 ± 3.5 | ||
Insulation resistance | MΩ | ≥ 5000 ( 50VDC ) | ||
Compensated temperature | ℃ | -10 ~+40 | ||
Operating temperature | ℃ | -35 ~ +65 | ||
Storage temperature | ℃ | -40 ~ +70 | ||
Element material | Stainless steel | |||
Ingress protection (according to EN 60529) | IP68 | |||
Recommended torque on fixation | N.m | M8:25 M10:50 | ||
ATEX classification (optional) | II1G Ex ia IIC T4 | II1D Ex iaD 20 T73℃ C | II3G Ex nL IIC T4 | |
Wiring：
◎Shielded, 6 and 4 conductor cable for all capacities；
◎Cable diameter: Φ 5mm；
◎Standard cable length for 4 conductor cable: 3m and for 6 conductor cable: 6m；
◎Shield not connected to element；
