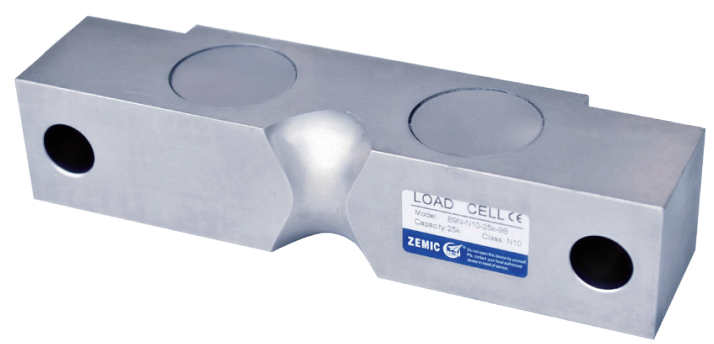

Short Description:
◎Stainless steel construction, dual shear beam structure, adhesive sealed, compression loading available；
◎Ingress protection (according to EN 60529): IP67；
◎Suitable for electronic truck scales, hopper scales, track scales and other electronic weighing devices；
Available models：
Capacity | Accuracy | Full article description |
xxklb | C3 | B9N-C3-xxK-9B |
Specification：
Maximum capacity ( Emax ) | klb | 10/15/20/25/30/40/50/60/75/100/125 |
Accuracy class | C3 | |
Maximum number of verification intervals | N.max | 3000 |
Maximum number of load cell intervals ( nLC ) | vmin | Emax/10000 |
Combined error | %FS | ±0.020 |
Creep | %FS/30min | ±0.016 |
Temperature effect on sensitivity | %FS/10℃ | ±0.011 |
Temperature effect on zero | %FS/10℃ | ±0.015 |
Output sensitivity ( = FS ) | mV/V | 3.0±0.003 |
Input resistance | Ω | 700±7 |
Output resistance | Ω | 703±4 |
Insulation resistance | MΩ | ≥ 5000(50VDC) |
Zero balance | %FS | ±1.0 |
Compensated temperature | ℃ | -10~+40 |
Operating temperature | ℃ | -35~+65 |
Excitation, recommended voltage | V | 5~12(DC) |
Excitation maximum | V | 18(DC) |
Safe overload | of Emax | 150 |
Ultimate overload | of Emax | 300 |

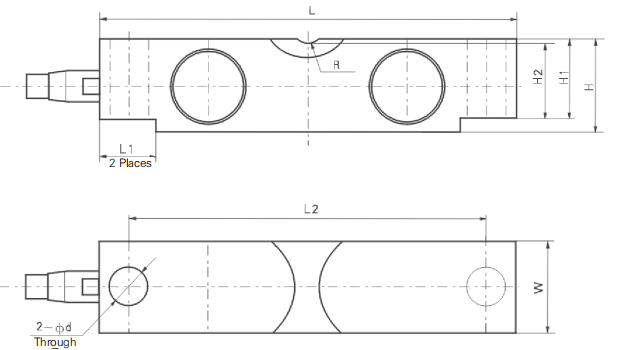

Dimensions in mm：
Dimension | L | L1 | L2 | H | H1 | H2 | Φd | W | R |
10~25klb | 197 | 35 | 165 | 49.3 | 43.2 | 41.4 | Φ17.3 | 43 | R19.1 |
(7.80) | (1.40) | (6.50) | (1.90) | (1.70) | (1.60) | (1.70) | |||
30~40klb | 260.4 | 49 | 216 | 62 | 53.3 | 50.8 | Φ20.6 | 49.3 | R25.4 |
(10.30) | (1.90) | (8.50) | (2.44) | (2.10) | (2.00) | (1.90) | |||
50~75klb | 260.4 | 49 | 216 | 74.7 | 67.3 | 64.5 | Φ26.9 | 62 | R25.4 |
(10.30) | (1.90) | (8.50) | (2.90) | (2.65) | (2.50) | (2.40) | |||
100~125klb | 387.4 | 79.5 | 324 | 98 | 87.1 | 83.8 | Φ41.2 | 73.7 | R38.1 |
(15.30) | (3.10) | (12.80) | (3.90) | (3.40) | (3.30) | (2.90) |
Wiring：
◎Adopt shielded, 4 conductor cable: Φ5mm；
◎Standard cable length: 9m；
