B6Q
SAINTBOND
Short Description:

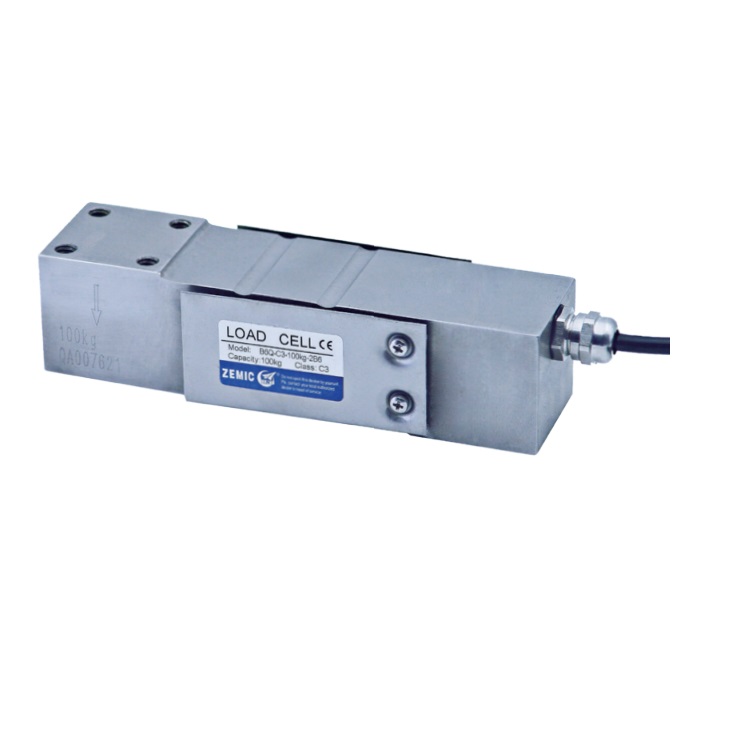

◎Stainless/ alloy steel IP67 single point load cell；
◎ Suitable for platform, belt and other electronic scales；
◎Maximum platform size: 400 mm x 400 mm；
Available models：
Capacity | Accuracy | Full article description |
xxkg | C3 | B6Q-C3-xxkg-1.5B6 |
xxkg | C3 | B6Q-C3-xxkg-1.5B6-S1 |
xxkg | C3 | B6Q-C3-xxkg-1.5YB6 |
xxkg | C3 | B6Q-C3-xxkg-1.5YB6-S1 |
Specification：
Maximum capacity ( Emax) | 50/100/150/200/250 | |||
Accuracy class | kg | C3 | ||
Maximum number of load cell intervals (nLC) | 3000 | |||
Ratio of minimumLC verification interval Y = Emax / Vmin | Emax/10000 | |||
Combined error | %FS | ±0.020 | ||
Creep | %FS/30min | ±0.016 | ||
Temperature effect on sensitivity | %FS/10℃ | ±0.011 | ||
Temperature effect on zero | %FS/10℃ | ±0.015 | ||
Output sensitivity (= FS) | mV/ | 2.0+0.2 | ||
Input resistance | Ω | 400±20 | ||
Output resistance | Ω | 351±2.0 | ||
Insulation resistance | MΩ | ≥ 5000(50VDC) | ||
Zero balance | %FS | ±1.5 | ||
Compensated temperature | ℃ | -10~+40 | ||
Operating temperature | ℃ | -35~+65 | ||
Excitation, recommended voltage | V | 5-12(DC) | ||
Excitation maximum | V | 18(DC) | ||
Safe overload | of Emax | 150 | ||
Ultimate overload, | of Emax | 300 | ||
Corner correction | 0.02%load value/100mm | |||
Recommended torque on fixation | N.m | 10 | ||
ATEX classification (optional) | Ⅱ1G Ex ia ⅡC T4 | Ⅱ1D Ex iaD 20 T73℃ | Ⅱ3G Ex nL ⅡC T4 | |
Note: "S1" output sensitivity is 2.0± 0.002mV/V, input resistance is 384 +4 | ||||
Dimensions in mm：
Dimension | H | H1 | M |
50kg | 38(1.5) | 36(1.42) | M6-6H |
100kg-250kg | 39.9 (1.57) | 38 (1.5) | 1/4-20UNC-2B |
50 kg without 1/4-28UNF-2B threaded hole | |||
Wiring：
◎Adopt shielded, 4 conductor cable: Φ5.0mm；
◎Standard cable length: 1.5m；
Short Description:
◎Stainless/ alloy steel IP67 single point load cell；
◎ Suitable for platform, belt and other electronic scales；
◎Maximum platform size: 400 mm x 400 mm；
Available models：
Capacity | Accuracy | Full article description |
xxkg | C3 | B6Q-C3-xxkg-1.5B6 |
xxkg | C3 | B6Q-C3-xxkg-1.5B6-S1 |
xxkg | C3 | B6Q-C3-xxkg-1.5YB6 |
xxkg | C3 | B6Q-C3-xxkg-1.5YB6-S1 |
Specification：
Maximum capacity ( Emax) | 50/100/150/200/250 | |||
Accuracy class | kg | C3 | ||
Maximum number of load cell intervals (nLC) | 3000 | |||
Ratio of minimumLC verification interval Y = Emax / Vmin | Emax/10000 | |||
Combined error | %FS | ±0.020 | ||
Creep | %FS/30min | ±0.016 | ||
Temperature effect on sensitivity | %FS/10℃ | ±0.011 | ||
Temperature effect on zero | %FS/10℃ | ±0.015 | ||
Output sensitivity (= FS) | mV/ | 2.0+0.2 | ||
Input resistance | Ω | 400±20 | ||
Output resistance | Ω | 351±2.0 | ||
Insulation resistance | MΩ | ≥ 5000(50VDC) | ||
Zero balance | %FS | ±1.5 | ||
Compensated temperature | ℃ | -10~+40 | ||
Operating temperature | ℃ | -35~+65 | ||
Excitation, recommended voltage | V | 5-12(DC) | ||
Excitation maximum | V | 18(DC) | ||
Safe overload | of Emax | 150 | ||
Ultimate overload, | of Emax | 300 | ||
Corner correction | 0.02%load value/100mm | |||
Recommended torque on fixation | N.m | 10 | ||
ATEX classification (optional) | Ⅱ1G Ex ia ⅡC T4 | Ⅱ1D Ex iaD 20 T73℃ | Ⅱ3G Ex nL ⅡC T4 | |
Note: "S1" output sensitivity is 2.0± 0.002mV/V, input resistance is 384 +4 | ||||
Dimensions in mm：
Dimension | H | H1 | M |
50kg | 38(1.5) | 36(1.42) | M6-6H |
100kg-250kg | 39.9 (1.57) | 38 (1.5) | 1/4-20UNC-2B |
50 kg without 1/4-28UNF-2B threaded hole | |||
Wiring：
◎Adopt shielded, 4 conductor cable: Φ5.0mm；
◎Standard cable length: 1.5m；
