B6N
SAINTBOND
Short Description:

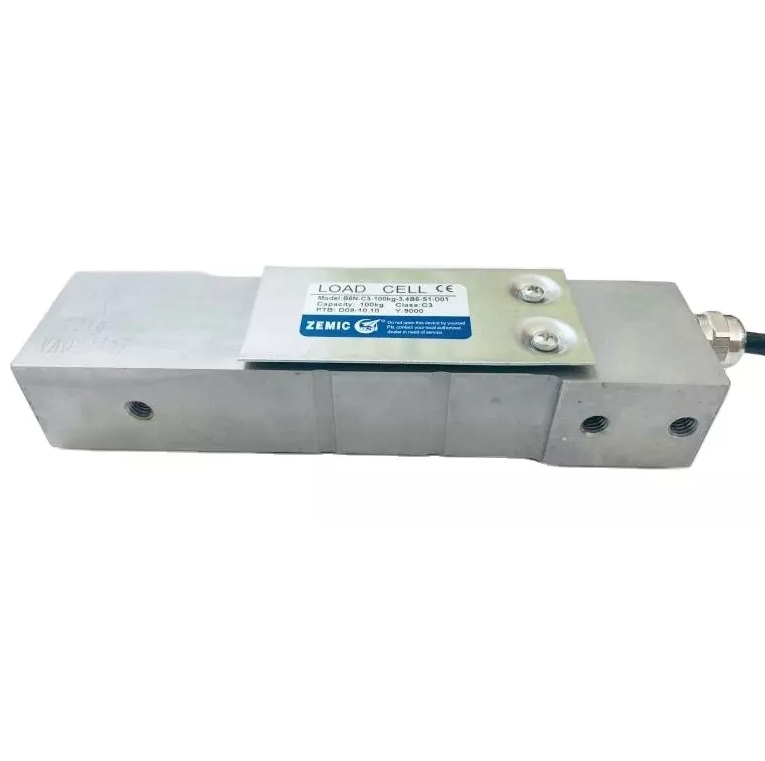

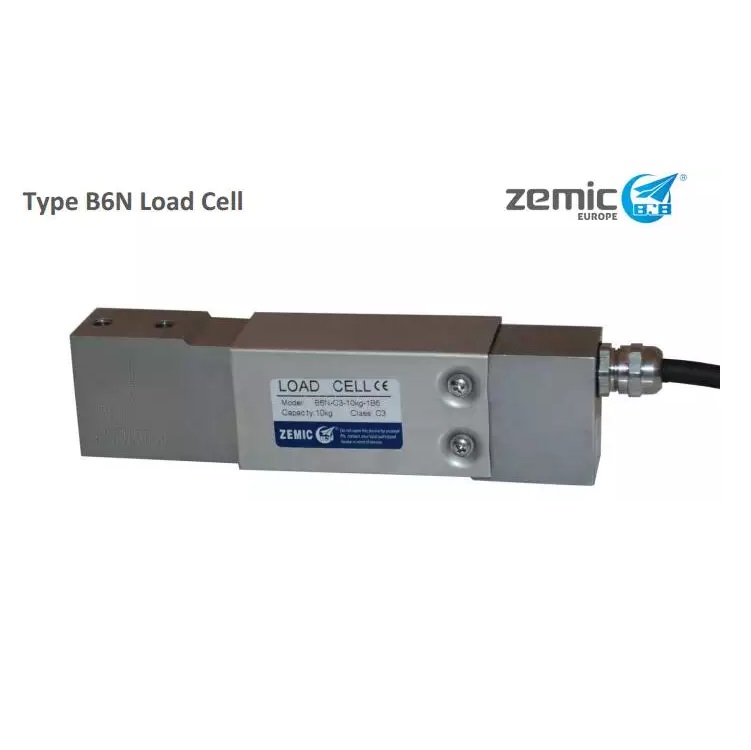

◎Stainless steel IP67 single point load cell；
◎Bending beam；
◎Suitable for weighing equipment like platform and belt scales；
◎ Maximum platform size: 400 x 400 mm；
Available models：
Capacity | Accuracy | Full article description | Capacity | Accuracy | Full article description |
5kg | C3/C4 | B6N-C3/C4 -5kg-1B6 | 30kg | C3/C4 | B6N-C3/C4 -30kg-1B6 |
7kg | C3/C4 | B6N-C3/C4 -7kg-1B6 | 50kg | C3 | B6N-C3-50kg-1B6 |
8kg | C3/C4 | B6N-C3/C4-8kg-1B6 | 75 kg | C3 | B6N-C3-75kg-1B6 |
10kg | C3/C4 | B6N-C3/C4 -10kg-1B6 | 100kg | C3 | B6N-C3-100kg-1B6 |
15kg | C3/C4 | B6N-C3/C4-15kg-1B6 | 150kg | C3 | B6N-C3-150kg-1B6 |
20kg | C3/C4 | B6N-C3/C4 -20kg-1B6 | 200kg | C3 | B6N-C3-200kg-1B6 |
Specification：
Accuracy class | OIML R60 C3 | OIML R60 C4 | ||
Output sensitivity ( =FS) | mV/V | 2.0 ± 0.2 | ||
Maximum capacity ( Emax) | kg | 5/7/8/10/15/20/30/50/75/100/150/200 | ||
Maximum number of load cell intervals (nLC) | 3000 | 4000 | ||
Ratio of minimum LC verification interval Y = Emax / Vmin | 10000 | 15000 | ||
Combined error | %FS | ± 0.0230 | ±0.0175 | |
Minimum dead load | kg | 0 | ||
Safe overload | of Emax | 150% | ||
UIitimate overload | of Emax | 300% | ||
Zero balance | %FS | ± 1.0 | ||
Excitation, recommended voltage | V | 5~12(DC) | ||
Excitation maximum | V | 18(DC) | ||
lnput resistance | Ω | 400 ±20 | ||
Output resistance | Ω | 350 ±3.5 | ||
Insulation resistance | MΩ | ≥ 5000(50VDC) | ||
Compensated temperature | ℃ | ‘-10~+40 | ||
Operating temperature | ℃ | -35~+65 | ||
Storage temperature | ℃ | -40~+70 | ||
Element material | Stainless steel | |||
Ingress protection (according to EN 60529) | IP67 | |||
Recommended torque on fixation | N.m | M6:10 | ||
ATEX classification (optional) | Ⅱ1G Ex ia ⅡC T4 | Ⅱ1D Ex iaD 20 T73℃ | Ⅱ3G Ex nL ⅡC T4 | |
Note: "S1" output sensitivity is 2.0± 0.002mV/V, input resistance is 384 +4 | ||||
Dimensions in mm：
Wiring：
◎Shielded, 6 conductor cable；
◎ Cable diameter: Φ5mm；
◎ Standard cable length: 1m；
◎Shield not connected to element；
Short Description:
◎Stainless steel IP67 single point load cell；
◎Bending beam；
◎Suitable for weighing equipment like platform and belt scales；
◎ Maximum platform size: 400 x 400 mm；
Available models：
Capacity | Accuracy | Full article description | Capacity | Accuracy | Full article description |
5kg | C3/C4 | B6N-C3/C4 -5kg-1B6 | 30kg | C3/C4 | B6N-C3/C4 -30kg-1B6 |
7kg | C3/C4 | B6N-C3/C4 -7kg-1B6 | 50kg | C3 | B6N-C3-50kg-1B6 |
8kg | C3/C4 | B6N-C3/C4-8kg-1B6 | 75 kg | C3 | B6N-C3-75kg-1B6 |
10kg | C3/C4 | B6N-C3/C4 -10kg-1B6 | 100kg | C3 | B6N-C3-100kg-1B6 |
15kg | C3/C4 | B6N-C3/C4-15kg-1B6 | 150kg | C3 | B6N-C3-150kg-1B6 |
20kg | C3/C4 | B6N-C3/C4 -20kg-1B6 | 200kg | C3 | B6N-C3-200kg-1B6 |
Specification：
Accuracy class | OIML R60 C3 | OIML R60 C4 | ||
Output sensitivity ( =FS) | mV/V | 2.0 ± 0.2 | ||
Maximum capacity ( Emax) | kg | 5/7/8/10/15/20/30/50/75/100/150/200 | ||
Maximum number of load cell intervals (nLC) | 3000 | 4000 | ||
Ratio of minimum LC verification interval Y = Emax / Vmin | 10000 | 15000 | ||
Combined error | %FS | ± 0.0230 | ±0.0175 | |
Minimum dead load | kg | 0 | ||
Safe overload | of Emax | 150% | ||
UIitimate overload | of Emax | 300% | ||
Zero balance | %FS | ± 1.0 | ||
Excitation, recommended voltage | V | 5~12(DC) | ||
Excitation maximum | V | 18(DC) | ||
lnput resistance | Ω | 400 ±20 | ||
Output resistance | Ω | 350 ±3.5 | ||
Insulation resistance | MΩ | ≥ 5000(50VDC) | ||
Compensated temperature | ℃ | ‘-10~+40 | ||
Operating temperature | ℃ | -35~+65 | ||
Storage temperature | ℃ | -40~+70 | ||
Element material | Stainless steel | |||
Ingress protection (according to EN 60529) | IP67 | |||
Recommended torque on fixation | N.m | M6:10 | ||
ATEX classification (optional) | Ⅱ1G Ex ia ⅡC T4 | Ⅱ1D Ex iaD 20 T73℃ | Ⅱ3G Ex nL ⅡC T4 | |
Note: "S1" output sensitivity is 2.0± 0.002mV/V, input resistance is 384 +4 | ||||
Dimensions in mm：
Wiring：
◎Shielded, 6 conductor cable；
◎ Cable diameter: Φ5mm；
◎ Standard cable length: 1m；
◎Shield not connected to element；
