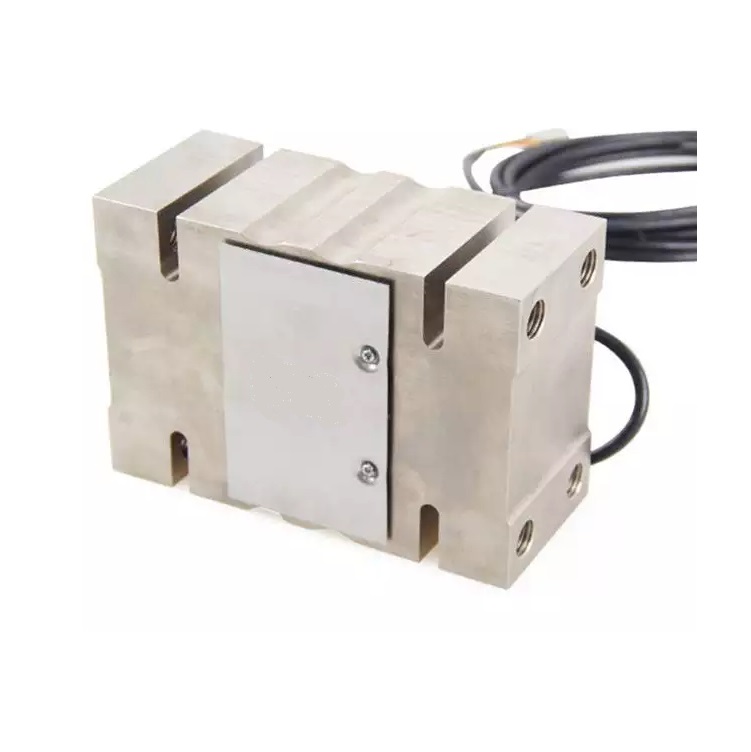

B6F
SAINTBOND
Short Description:
◎Stainless steel IP67 single point load cell；
◎Bending beam；
◎Suitable for belt, platform and other electronic weighing devices；
◎Maximum platform size:
for 50kg-200kg: 400 x 400 mm；for 250kg-500kg: 600 x 800 mm；for 750kg-2t: 1200 x 1200 mm；
Available models：
Capacity | Accuracy | Full article description | Capacity | Accuracy | Full article description |
100kg | C3 not approved | B6F-C3-100kg-3B6 | 500 kg | C3 | B6F-C3-500kg-3B6 |
150kg | C3 not approved | B6F-C3-150kg-3B6 | 750 kg | C3 | B6F-C3-750kg-3B6 |
200kg | C3 not approved | B6F-C3-200kg-3B6 | 1000 kg | C3 | B6F-C3-1000kg-3B6 |
250kg | C3 not approved | B6F-C3-250kg-3B6 | 2000 kg | C3 | B6F-C3-2000kg-3B6 |
Specification：
Accuracy class | C3 | OIML R60 C3 | |||
Output sensitivity ( = FS ) | mV/V | 2.0 ± 0.2 | |||
Maximum capacity ( Emax ) | kg | 100, 150, 200, 250 | 500, 750, 1000, 2000 | ||
Maximum number of load cell intervals ( nLC ) | 3000 | ||||
Ratio of minimum LC verification interval Y = Emax / vmin | 10000 | ||||
Combined error | %FS | ±0.023 | |||
Safe overload | of Emax | 150 % | |||
Ultimate overload | of Emax | 300 % | |||
Zero balance | %FS | ± 1.0 | |||
Excitation, recommended voltage | V | 5 ~ 12 (DC) | |||
Excitation maximum | V | 18 (DC) | |||
Input resistance | Ω | 400±20 | |||
Output resistance | Ω | 350 ± 3.5 | |||
Insulation resistance | MΩ | ≥ 5000 ( 50VDC ) | |||
Compensated temperature | ℃ | -10 ~+40 | |||
Operating temperature | ℃ | -35 ~ +65 | |||
Storage temperature | ℃ | -40 ~ +70 | |||
Element material | Stainless steel | ||||
Ingress protection (according to EN 60529) | IP67 | ||||
Recommended torque on fixation | N.m | M12:75 (Below 500kg)M16:200(750kg-2000kg) | |||
ATEX classification (optional) | II1G Ex ia IIC T4 | II1D Ex iaD 20 T73℃ | II3G Ex nL IIC T4 | ||
Note: "S1" output sensitivity is 2.0±0.002mV/V, input resistance is 384±4 | |||||
Dimensions in mm：
Dimension | 50kg-200kg | 250kg-500kg | 750kg-2t |
B | 44(1.73) | 60(2.36) | 76(2.99) |
B1 | 24(0.94) | 36(1.42) | 46(1.81) |
H | 75(2.95) | 95(3.74) | 125(4.92) |
H1 | 50(1.97) | 70(2.76) | 95(3.74) |
H2 | 30(1.18) | 30(1.18) | 65(2.56) |
L | 156(6.14) | 146(5.75) | 176(6.93) |
L1 | 112(4.40) | 110(4.33) | 110(4.33) |
L2 | 14(0.55) | 11(0.43) | 24(0.94) |
M | M12 | M12 | M16 |
Wiring：
◎Shielded, 6 conductor cable；
◎Cable diameter: Φ 6.2mm；
◎Standard cable length: 3m；
◎Shield not connected to element；
