| Quantity: | |
|---|---|
ATP
SAINTBOND
Description:
Interface | USB (RS232) |
communication protocol | 9600,N,8,1 |
Receive Mode | Continuous or Command |
Operating Temperature | -10 °C ~40 °C |
Allowable Working Temperature | -40 ° C ~ 70 ° C |
Wireless Transmission Frequency | 430MHz to 470MHz |
Wireless Transmission Distance | 300 meters (in wide place) |
Optional Power | DC5V(USB) |

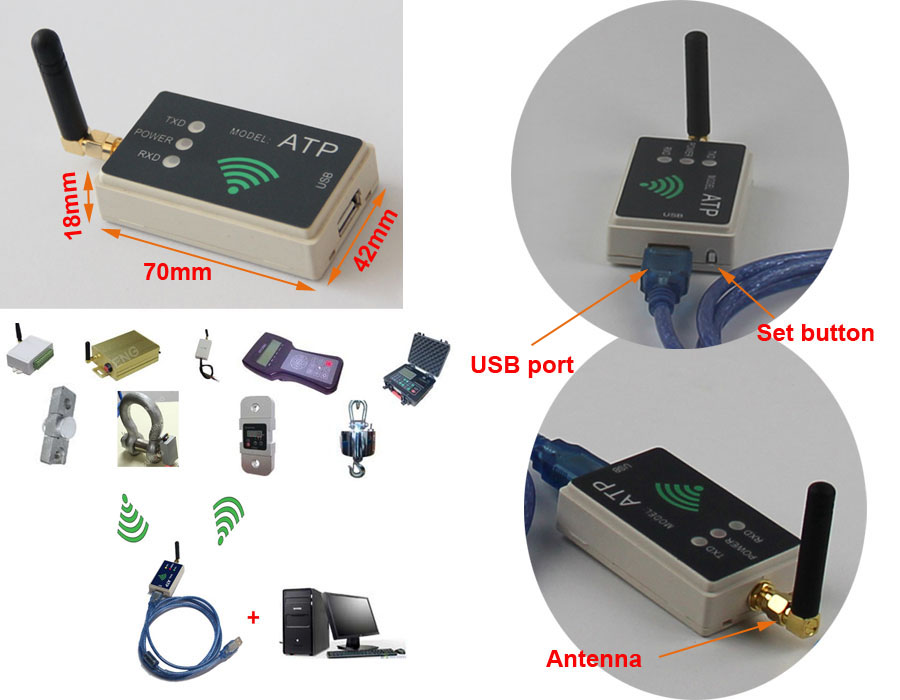

Dimension | 70×42×18mm(Without antenna) |
Software Installation instructions:
1.When you Insert the USB port to PC,it will notice you to install the driver of USB to RS232, after installation , Computer will find a new RS232 port.

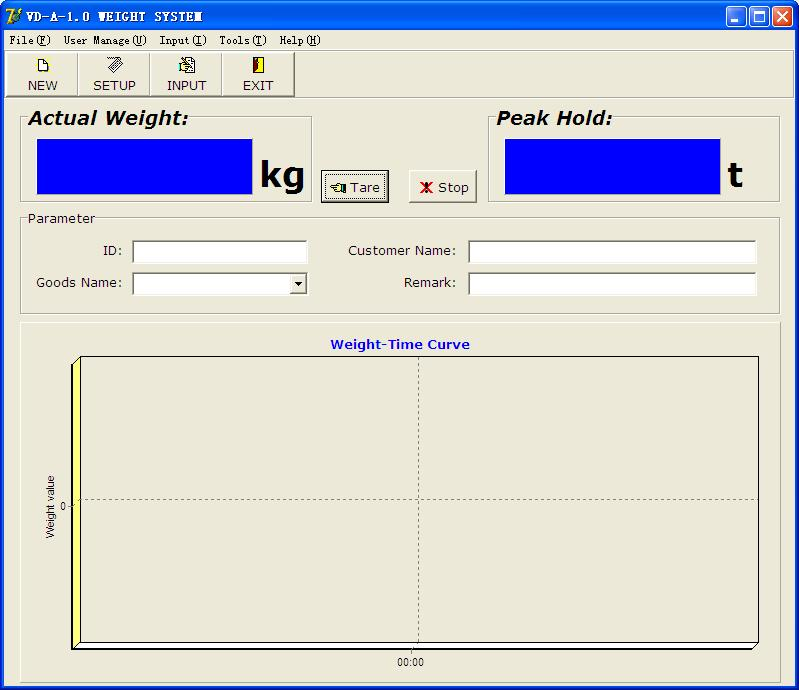

2.Run the ATP software, click “SETUP” button, you will enter to system setup form, choose the com port ,then click “SAVE” button .
3.Restart the software, You can find the red led is light and green light is flickering,that is ok.
| Product name | ATP Stable Wireless Weighing Indicator Wireless Weighing Indicator |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
Description:
Interface | USB (RS232) |
communication protocol | 9600,N,8,1 |
Receive Mode | Continuous or Command |
Operating Temperature | -10 °C ~40 °C |
Allowable Working Temperature | -40 ° C ~ 70 ° C |
Wireless Transmission Frequency | 430MHz to 470MHz |
Wireless Transmission Distance | 300 meters (in wide place) |
Optional Power | DC5V(USB) |
Dimension | 70×42×18mm(Without antenna) |
Software Installation instructions:
1.When you Insert the USB port to PC,it will notice you to install the driver of USB to RS232, after installation , Computer will find a new RS232 port.
2.Run the ATP software, click “SETUP” button, you will enter to system setup form, choose the com port ,then click “SAVE” button .
3.Restart the software, You can find the red led is light and green light is flickering,that is ok.
| Product name | ATP Stable Wireless Weighing Indicator Wireless Weighing Indicator |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
