A28E
SAINTBOND
Introduction:

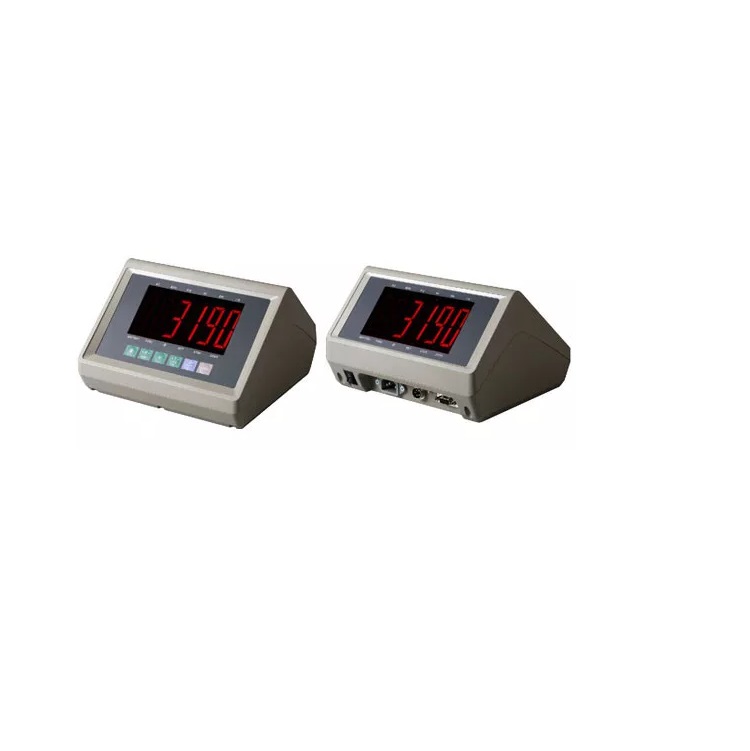

Double LED Display Weighing Indicator A28E is widely applied in electronic platform scale、electronic floor scale and so on alike static weighing system equipped with 1~4 350Ωload cell.
Standard function:
◎Double windows with 2 inch height LED display
◎Both screens could be set on/off by parameters, brightness independently adjusted
◎Peak value holding and animal weighing function
◎External serial port printing function
◎Multi-Unit switch function
◎Manual accumulation and automatic accumulation
◎Preset tare function
◎High-low limits alarm function, HIGH-OK-LOW status indication.
◎Four grades battery indication, low power alarm and auto power off function.
◎Auto-sleep and multiple energy-saving mode.
◎AC/DC both available, able to charge after power off.
◎Optional RS232 communication interface ,and baud rate is selectable
◎Optional 20mA current loop interface for scoreboard connection
Technical Parameter:
◎Precision grade: 3 grades.
◎Max verification division:3000
◎High precision A/D conversion with readability 1/30000
◎Input-signal range: -19mV～19mV
◎Nonlinear:≤0.0015%
◎Power supply: DC 5V
◎Load cell connection: able to connect 1~4 350Ω load cell.
◎Division:1/2/5/10/20/50(selectable)
◎Display: main/auxiliary display both for 6 digits LED, character height: 2 inch,15 status instruction lights
◎Data transportation port(optional):RS-232C,20 mA current loop for scoreboard.
◎Power supply: AC 220V / 50~60Hz
DC 6V/4Ah（Lead-acid battery inside）
◎Operation temperature: -10℃～40℃
◎Storage temperature:-25℃～55℃
Scoreboard interface(optional)
◎Signal output method: serial output, current loop signal.
◎Baud rate:600
◎Distance of scoreboard signal transportation:≤200M
Serial communication interface(Optional)
◎RS232C,Baud rate:600/1200/2400/4800/9600 selectable
◎Distance of RS232 signal transportation:≤15
| Product name | A28E Weight Transmitter Indicator Scale Loadcell Weighing Indicator |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
