A23E Scale Loadcell Weighing Indicator Analogue Transmitter for Load Cells

Availability:
Quantity:
  • A23E
  • SAINTBOND

圣邦网站2详情页-1000_01 - 副本


Introduction:

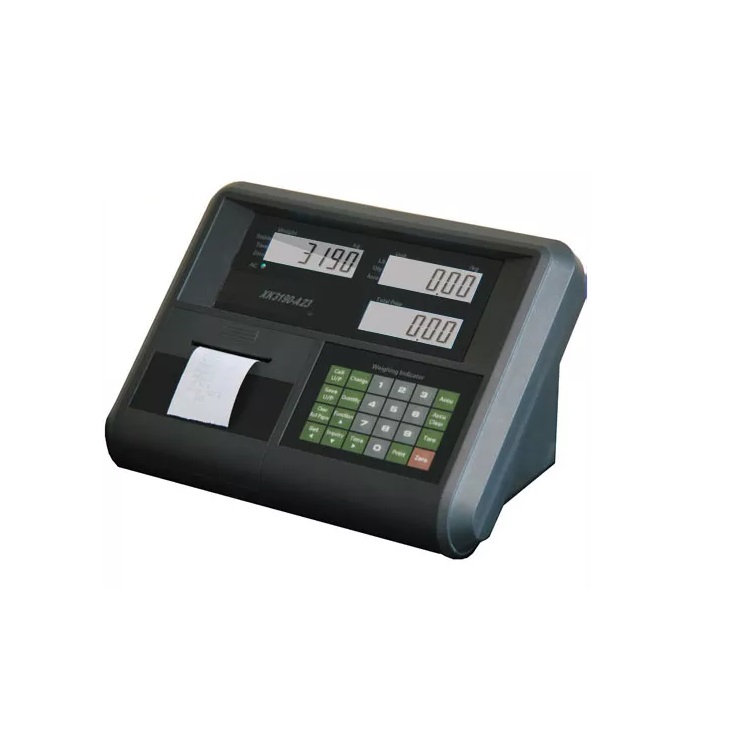

Weighing indicator A23P is a price-computing indicator with three LCD display windows and built-in printer. It is able to apply in static weighing system equipped with 1-4 load cell such as electronic platform scale, electronic floor scale etc.



Standard function:

Standard price-computing function;

Standard built-in stylus printer;

Able to save and call 100 unit prices;

Accumulation function, including accumulation display and accumulation clear, able to select to print details and accumulation note;

Able to inquiry the saved records by pressing the buttons;

Able to select items to print freely;

Simply counting function, and able to price-computing by the quantity;

Able to save, inquiry and print 1000 weighing records;

Standard RS232 interface, and optioanl communication format;

Optional high-low limits alarm function;

Optional KG/LB one-key switch function;



Technical Parameter:

Accuracy class: III

Max verified counts: 3000;

Input signal range: -16 18mV;

AD conversion method: Σ-Δ;

Load cell excitation: DC 5V;

Load cell connection mode: 4 wire;

Number of connection load cell: 1-4 at 350Ω;

Power supply: AC220V, 50Hz; DC built-in 6V/5AH rechargeable battery;

Time for preheat: 15 minutes;



Scoreboard interface:

lInterface type: current loop;

Baud rate: 600;

Transmission distance: <2000 meters;



Printer interface:

Standard panel type mini printer;

Standard serial print interface, able to connect printer LQ-300K+, baud rate 9600;



Serial communication interface:

RS232Transmission type: RS232;

Baud rate: 600/1200/2400/4800/9600(optional);

圣邦网站1详情页_05

Product name A23E Scale Loadcell Weighing Indicator Analogue Transmitter for Load Cells
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
