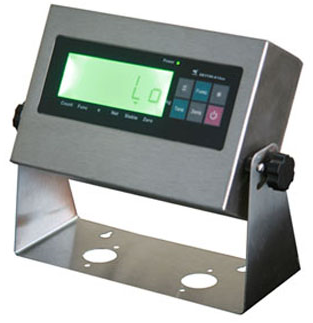

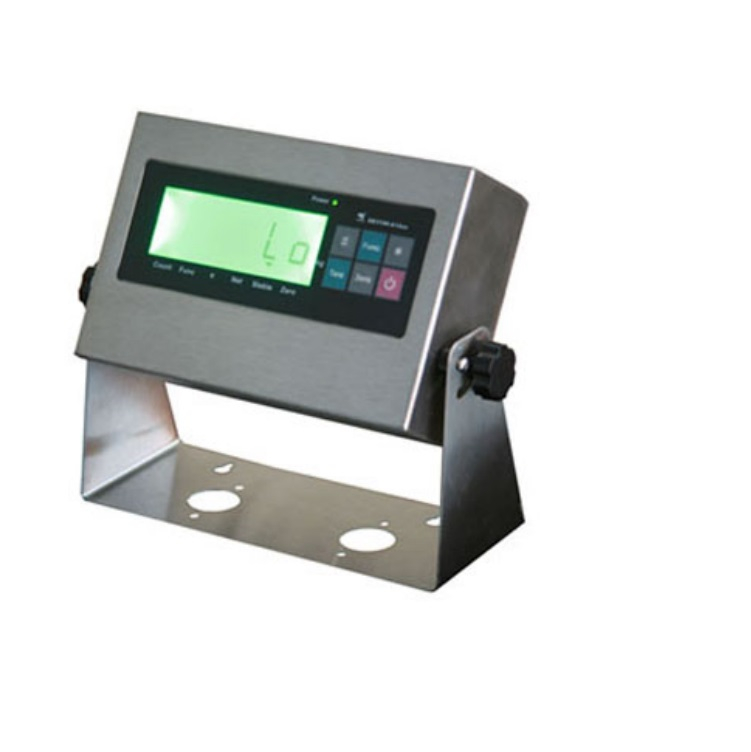

A12SS Load Cells Indicators Weight Indicators And Transmitters

Availability:
Quantity:
  • A12SS
  • SAINTBOND

圣邦网站2详情页-1000_01 - 副本


Introduction:

Weighing indicator XK3190-A12+SS adopts fast speed, high precision -Δ A/D conversion technology and special anti-vibration software technology, widely applied in electronic platform scale,electronic floor scale,mechanic-electronic conversion scale and so on alike static weighing system equipped with 1~4 load cell.



Standard function:

● High precision A/D conversion with readability 1/30000;

● Call and display inner code to replace weight observing and analysis tolerance;

● Special digital filtering technology to strengthen anti-vibration ability;

● Able to set up zero-tracking range, zero(auto/manual) range;

● Able to set up digital filter intensity,range and stable time;

● With counting function (unit weight data save protection in case of power off);

● Selectable backlight mode;

● AC/DC power supply, with built-in rechargeable 6V/4AH battery;

● Alarm for low battery and auto power off at low battery;

● Optional of RS232 interface with selectable baud rate and communication method;

● Optional of scoreboard interface sending by 20mA current loop;



Nonstandard Function( Optional, please inform sales staff if need):

● KG/LB switch function;

● Auto calculating average function ( For livestock scale);

● Two fixed-value outputs function ( For low speed weighing);



Technical Parameter:

● A/D conversion method: -Δ;

● A/D conversion speed: 10 times/sec.;

● Max. A/D conversion bits: 20;

● Input signal range: -10mV~15mV;

● Input sensitivity: 1 μV/e;

● Load cell excitation: DC 5V; I150mA;

● Max. connection number of load cell: 4 at 350 ohm;

● Load cell connection mode: 6 wire;

● Verified counts: 3000;

● Max. external counts: 30000;

● Max. internal resolution: 300000;

● Division: 1/2/5/10/20/50 optional;

● Display(XK3190-A12): 6 bits LCD, 6 status indications;

● Display(XK3190-A12E): 6 bits LED, 6 status indications;

● Display range: -2000~150000(d=10);

● Optional: Scoreboard interface serial sending signal by current loop with baud rate 600;

● Transmission distance: Current loop2000 meters;

● Interface type: RS232C serial communication interface, with selectable baud rate by continuous sending method or on command method;

● Baud rate seletable:1200/2400/4800/9600;

● Transmission distance: RS232C30 meters;

● Power supply: AC 187~242V,49~51Hz; DC built-in rechargeable 6V/4AH battery;

圣邦网站1详情页_05

Product name A12SS Load Cells Indicators Weight Indicators And Transmitters
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
