Introduction: Introduction:
Weighing indicator XK3190-A12+(E) adopts fast speed, high precision ∑-Δ A/D conversion technology and special anti-vibration software technology, widely applied in electronic platform scale,electronic floor scale,mechanic-electronic conversion scale and so on alike static weighing system equipped with 1~4 load cell.
Standard Function:
●High precision A/D conversion with readability 1/30000
●Call and display inner code to replace weight observing and analysis tolerance
●Special digital filtering technology to strengthen anti-vibration ability
●Able to set up zero-tracking range, zero(auto/manual) range
●Able to set up digital filter intensity、range and stable time
●With counting function (unit weight data save protection in case of power off)
●Selectable backlight mode
●AC/DC power supply, with built-in rechargeable 6V/4AH battery
●Alarm for low battery and auto power off at low battery
●Optional of RS232 interface with selectable baud rate and communication method
●Optional of scoreboard interface sending by 20mA current loop
Nonstandard Function( Optional, please inform sales staff if need):
●KG/LB switch function
●Auto calculating average function ( For livestock scale)
Technical Parameter:
●A/D conversion method: ∑-Δ;
●A/D conversion speed: 10 times/sec.;
●Max. A/D conversion bits: 20;
●Input signal range: -10mV~15mV;
●Input sensitivity: ≥1μV/e;
●Load cell excitation: DC 5V; I≤150mA;
●Max. connection number of load cell: 4 at 350 ohm;
●Load cell connection mode: 6 wire;
●Verified counts: 3000;
●Max. external counts: 30000;
●Max. internal resolution: 300000;
●Division: 1/2/5/10/20/50 optional;

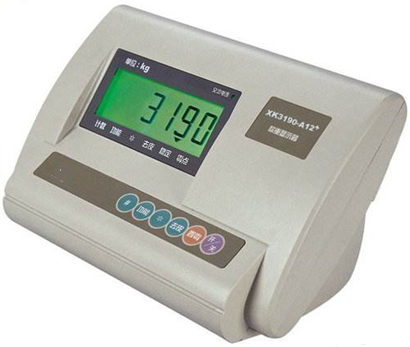

●Display(XK3190-A12): 6 bits LCD, 6 status indications;

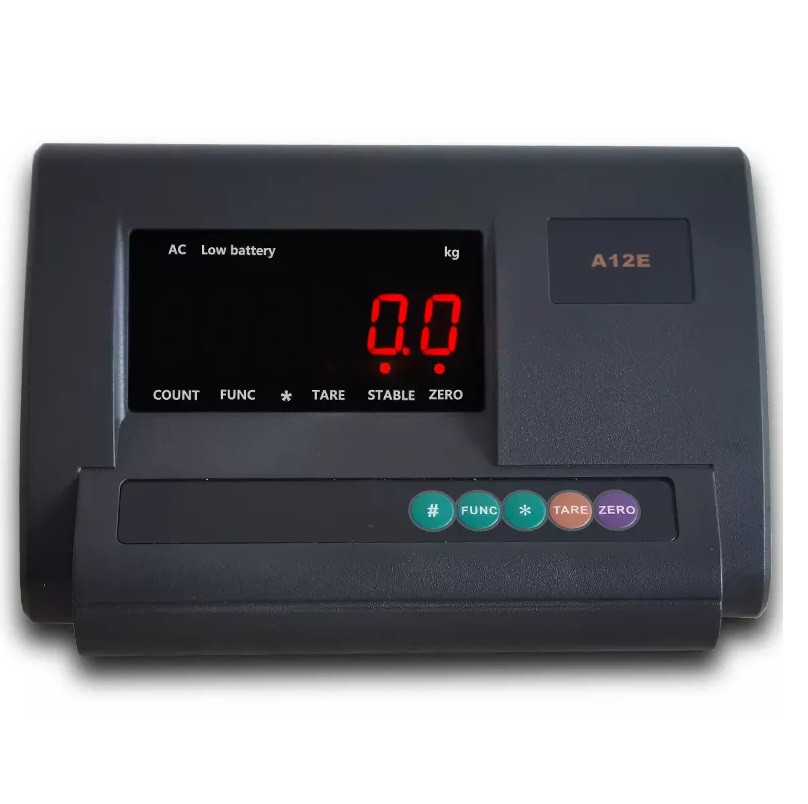

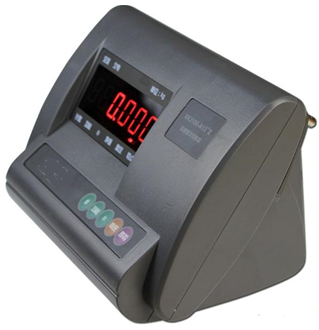

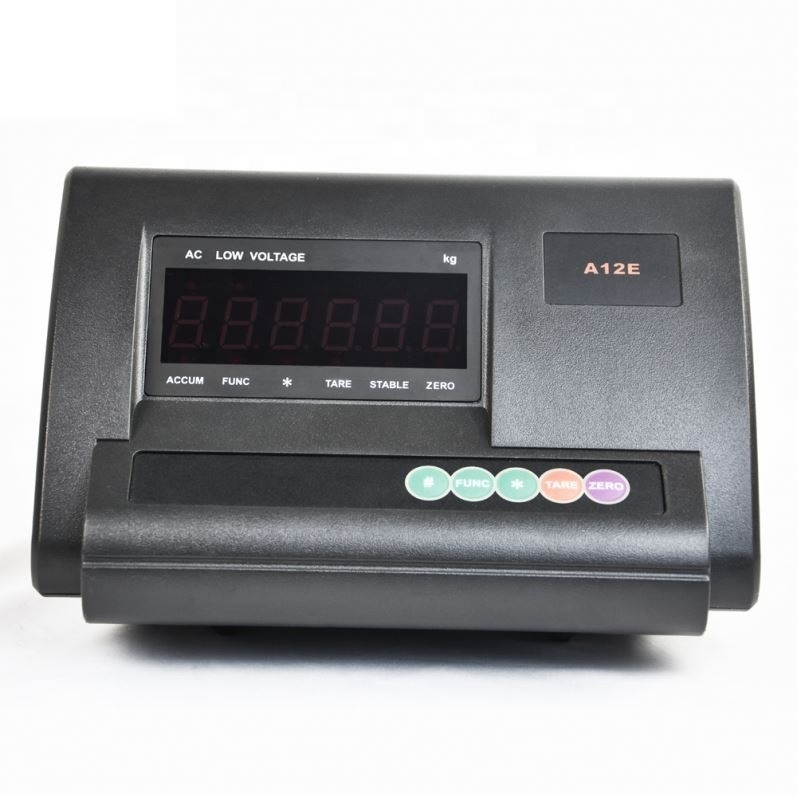

●Display(XK3190-A12E): 6 bits LED, 6 status indications;
●Display range: -2000~150000(d=10);
●Optional: Scoreboard interface serial sending signal by current loop with baud rate 600;
●Transmission distance: Current loop≤2000 meters;
●Interface type: RS232C serial communication interface, with selectable baud rate by continuous sending method or on command method;
●Baud rate seletable:1200/2400/4800/9600;
●Transmission distance: RS232C≤30 meters;
●Power supply: AC 187~242V,49~51Hz; DC built-in rechargeable 6V/4AH battery;
| Product name | |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
