WS1101
SAINTBOND

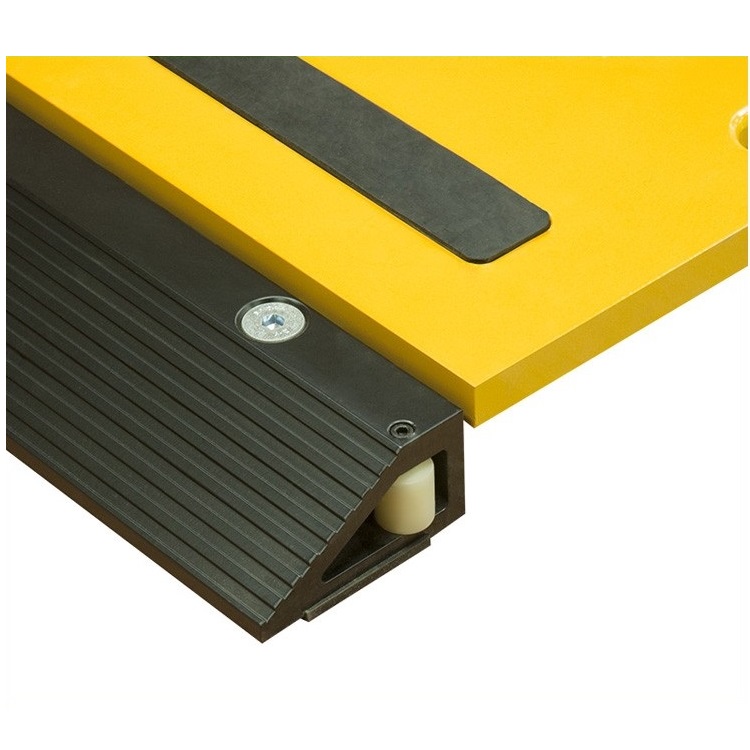

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.
Outline Dimension (mm):
Configuration Table:
Model | Size(A×B×C) (mm) | Capacity (Each Weighing Pad) | Description(Each Pad) | ||
AS1101 | 300×400×56.5 | 500~8000Kg | 4pcs LC348H LoadCell,10m Cable Capacity:500/1000/1500Kg | ||
400×500×56.5 | 1000~10000Kg | 4pcs LC348H LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg | |||
450×700×56.5 | 5000~15000Kg | 6pcs LC348H LoadCell,10m Cable Capacity:5000/10000/15000Kg | |||
500×900×56.5 | 5000~20000Kg | 8pcs LC348H LoadCell,10m Cable Capacity:10000/15000/200000Kg | |||
Product Parameters | |||||
Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ | ||||
Dynamic error: 3%F.S (5~10km/h) | Static error:0.1~0.3%F.S | ||||
Static comprehensive error: 0.1~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) | ||||
Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ | ||||
Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ | ||||
Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ | ||||
Repeatability: 0.05%F.S | Safe overload:120% | ||||
Zero balance: ±1%F.S | Ultimate overload:150% | ||||
Excitation voltage:9~15VDC | Defend grade: IP66 | ||||
Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg | ||||
Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment; Works both dynamically and statically; Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.
Outline Dimension (mm):
Configuration Table:
Model | Size(A×B×C) (mm) | Capacity (Each Weighing Pad) | Description(Each Pad) | ||
AS1101 | 300×400×56.5 | 500~8000Kg | 4pcs LC348H LoadCell,10m Cable Capacity:500/1000/1500Kg | ||
400×500×56.5 | 1000~10000Kg | 4pcs LC348H LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg | |||
450×700×56.5 | 5000~15000Kg | 6pcs LC348H LoadCell,10m Cable Capacity:5000/10000/15000Kg | |||
500×900×56.5 | 5000~20000Kg | 8pcs LC348H LoadCell,10m Cable Capacity:10000/15000/200000Kg | |||
Product Parameters | |||||
Rated load:1/2/3/5/6/10/20t | Compensated temp.range:-10~+50℃ | ||||
Dynamic error: 3%F.S (5~10km/h) | Static error:0.1~0.3%F.S | ||||
Static comprehensive error: 0.1~0.5%F.S | Insulation resistance:≥5000 MΩ(100VDC) | ||||
Rated output:1.0±0.1 mV/V | Use temp.range:-30~+80℃ | ||||
Non-linearity:0.2%F.S | Temp.effect on zero: 0.03 F.S/10℃ | ||||
Error on corners: 0.2%F.S | Temp.effect on span:0.05 F.S/10℃ | ||||
Repeatability: 0.05%F.S | Safe overload:120% | ||||
Zero balance: ±1%F.S | Ultimate overload:150% | ||||
Excitation voltage:9~15VDC | Defend grade: IP66 | ||||
Recommended voltage:10 V | Weight Itself:12/25/28/40/55/65kg | ||||
